Data bus:

32-bit, VL-bus

Size:

Full-length, full-height card

Hard drive supported:

Up to four IDE(AT) interface devices

Floppy drives supported:

360KB, 720KB, 1.2MB or 1.44MB drives

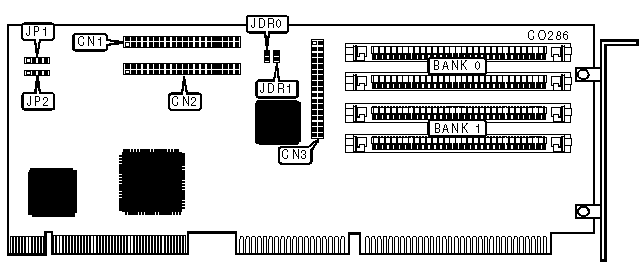

CONNECTIONS

Function

Location

40-pin connector - IDE (AT) interface 1

CN1

40-pin connector - IDE (AT) interface 2

CN2

34-pin connector - Floppy drive interface

CN3

4-pin connector - Drive active LED

JP1

4-pin connector - Speaker

JP2

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

Hard drive filtering for primary I/O address disabled

JDR0

open

Hard drive filtering for primary I/O address enabled

JDR0

closed

»

Hard drive filtering for secondary I/O address disabled

JDR1

open

Hard drive filtering for secondary I/O address enabled

JDR1

closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

512KB

(2) 256K x 9

NONE

1MB

(2) 256K x 9

(2) 256K x 9

2MB

(2) 1M x 9

NONE

2.5MB

(2) 1M x 9

(2) 256K x 9

2.5MB

(2) 256K x 9

(2) 1M x 9

4MB

(2) 1M x 9

(2) 1M x 9

8MB

(2) 4M x 9

NONE

8.5MB

(2) 4M x 9

(2) 256K x 9

8.5MB

(2) 256K x 9

(2) 4M x 9

10MB

(2) 4M x 9

(2) 1M x 9

10MB

(2) 1M x 9

(2) 4M x 9

16MB

(2) 4M x 9

(2) 4M x 9
