ADVANCED DIGITAL INFORMATION CORPORATION
BUSMASTER FAST-SCSI DCB-EISA
|
Data bus: |
32-bit, EISA |
|
Size: |
Full-length, full-height card |
|
Hard drive supported: |
Up to seven SCSI devices |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives |
|

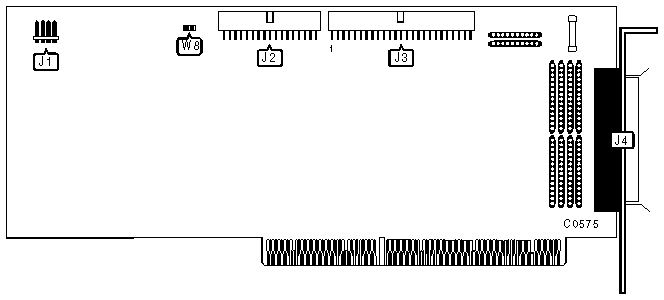

CONNECTIONS | |
|
Function |
Location |
|
4-pin-connector - drive active LED |
J1 |
|
34-pin control cable connector - floppy drive |
J2 |
|
50-pin SCSI connector - internal |
J3 |
|
50-pin SCSI connector - external |
J4 |
|
USER CONFIGURABLE SETTINGS | ||||
|
Function |
Location |
Setting | ||
|
» |
Floppy drive enabled |
W8 |
closed | |
|
|
Floppy drive disabled |
W8 |
open | |
|
|
Floppy drive enabled |
J3 |
pins 41 & 42 closed | |
|
|
Floppy drive disabled |
J3 |
pins 41 & 42 open | |
|
|
Note (1):The floppy drive controller can be enabled any one of three ways: (a) close jumper W8, or (b) close pins 41 & 42 of connector J3, or (c) select the floppy disk controller enabled option in the EISA configuration file. Note (2):To disable the floppy disk controller, all three of the above options must be disabled: (a) open jumper W8, and (b) open pins 41 & 42 of connector J3, and (c) select the floppy disk controller disabled option in the EISA configuration file. | |||
