Data bus:	32-bit, EISA-bus
Size:	Full-length, full-height card
Hard drive supported:	Up to seven SCSI devices
Floppy drives supported:	360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives

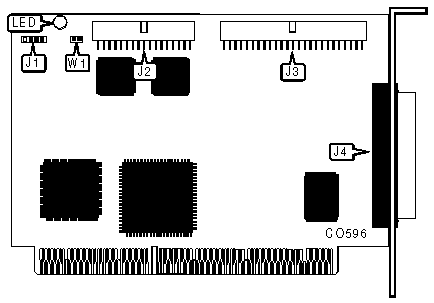

CONNECTIONS
Function	Location
4-pin connector - Drive activity LED	J1
34-pin connector Floppy drive interface	J2
50-pin connector - Internal SCSI interface	J3
50-pin connector - External SCSI-2 interface	J4

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Floppy drive installed	W1	Closed
	Floppy drive not installed	W1	Open

MISCELLANEOUS TECHNICAL NOTE

Note: The BT-746C is similar to the BT-747C with the exception that the BT-746C has no floppy connector
