Data bus:	32-bit VESA
Size:	Full-length, half-height card
Hard drive supported:	up to fourteen SCSI Interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

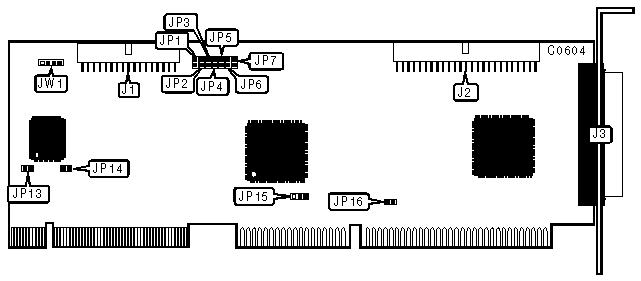

CONNECTIONS
Function	Location
34-pin connector - Floppy drive interface	J1
50-pin SCSI connector - internal	J2
50-pin SCSI connector - external	J3
4-pin connector - drive activity LED	JW1

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Floppy drive controller at 3FX address enabled	JP1	open
	Floppy drive controller disabled	JP1	closed
»	Hard drive controller address set at 17X	JP2	open
	Hard drive controller address set at 1FX	JP2	closed
»	ROM address set at C800:0	JP3	open
	ROM address set at D800:0	JP3	closed
»	VESA mode enabled	JP4	open
	ISA mode enabled	JP4	closed
»	Factory configured - do not alter	JP5	N/A
»	Factory configured - do not alter	JP6	N/A
»	Factory configured - do not alter	JP7	N/A
»	Floppy drive controller set at DRQ2	JP13	closed
	Floppy drive controller DRQ disabled	JP13	open
»	Floppy drive controller address set at IRQ6	JP14	closed
	Floppy drive controller IRQ disabled	JP14	open
»	Hard drive IRQ set at IRQ 15	JP15	pins 2 & 3 closed
	Hard drive IRQ set at IRQ 14	JP15	pins 1 & 2 closed
»	Floppy drive controller set at DACK2	JP16	closed
	Floppy drive controller DACK disabled	JP16	open

MISCELLANEOUS TECHNICAL NOTE

Note:When connecting additional SCSI devices, the user must make sure that proper termination is used on both ends of the SCSI bus. This controller is factory-configured to be the first SCSI device on the SCSI bus. Termination is supplied by resistor packs RP3, RP4, and RP5.
