Q LOGIC CORPORATION
FAST!SCSI BASIC I
|
| |
|
Data bus: |
16-bit ISA |
|
Size: |
Half-length, half-height card |
|
Hard drive supported: |
Up to seven SCSI devices |
|
Floppy drives supported: |
N/A |
|

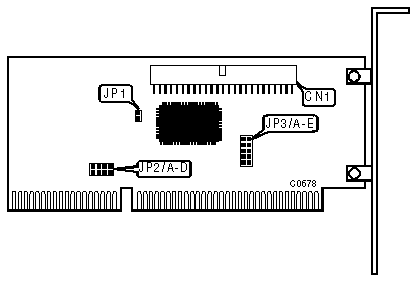

CONNECTIONS | |
|
Function |
Location |
|
50-pin SCSI connector - internal |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
I/O Address - 330-33Fh |
JP1 |
open |
|
I/O Address - 230-23Fh |
JP1 |
closed | |
| » |
Data transfer mode asynchronous |
JP3/A |
open |
|
Data transfer mode synchronous |
JP3/A |
closed | |
| » |
SCSI ID7 |
JP3/B |
open |
|
SCSI ID6 |
JP3/B |
closed | |
| » |
Parity - enabled |
JP3/C |
open |
|
Parity - disabled |
JP3/C |
closed | |
|
INTERRUPT SELECT | |||||||
|
IRQ |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
JP3/D |
JP3/E | |
| » |
IRQ11 |
open |
closed |
open |
open |
open |
open |
|
IRQ10 |
closed |
open |
open |
open |
closed |
open | |
|
IRQ12 |
open |
open |
closed |
open |
closed |
closed | |
|
IRQ15 |
open |
open |
open |
closed |
open |
closed | |
