Data bus:

32-bit, VL-bus

Size:

Half-length, half-height card

Hard drive supported:

Two IDE (AT) Interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

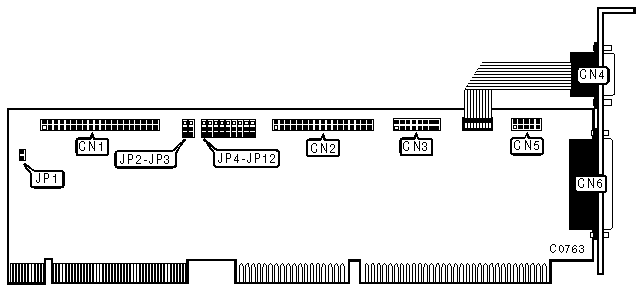

CONNECTIONS

Function

Location

40-pin IDE(AT) Interface connector

CN1

34-pin control cable connector - floppy drive

CN2

Game port

CN3

9-pin serial port 1 - external

CN4

10-pin serial port 2 - internal

CN5

25-pin parallel port

CN6

2-pin connector - drive active LED

JP1

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»

IDE port enabled

JP4

pins 1 & 2 closed

IDE port disabled

JP4

pins 2 & 3 closed

»

Floppy drive enabled

JP7

pins 1 & 2 closed

Floppy drive disabled

JP7

pins 2 & 3 closed

»

Game Port enabled

JP11

pins 1 & 2 closed

Game Port disabled

JP11

pins 2 & 3 closed

HARD DRIVE SPEED

Setting

JP2

JP3

»

Speed 2

pins 1 & 2 closed

pins 2 & 3 closed

Speed 0

pins 1 & 2 closed

pins 1 & 2 closed

Speed 1

pins 2 & 3 closed

pins 2 & 3 closed

Speed 3

pins 2 & 3 closed

pins 1 & 2 closed

PARALLEL PORT CONFIGURATION

LPT/Address

JP5

JP10

»

LPT2/378h

pins 1 & 2 closed

pins 1 & 2 closed

LPT3/278h

pins 1 & 2 closed

pins 2 & 3 closed

Disabled

pins 2 & 3 closed

n/a

SERIAL PORT 1 CONFIGURATION

COM/Address

JP6

JP8

»

COM1/3F8h

pins 1 & 2 closed

pins 1 & 2 closed

COM3/3E8h

pins 1 & 2 closed

pins 2 & 3 closed

Disabled

pins 2 & 3 closed

n/a

SERIAL PORT 2 CONFIGURATION

COM/Address

JP9

JP12

»

COM2/2F8h

pins 1 & 2 closed

pins 1 & 2 closed

COM4/2E8h

pins 1 & 2 closed

pins 2 & 3 closed

Disabled

pins 2 & 3 closed

n/a
