BUSLOGIC, INC.
BT-410CD
|
Data bus: |
32-bit VESA local bus |
|
Size: |
Three quarter-length, full-height card |
|
Hard drive supported: |
Four IDE (AT) interface drives, Two ATAPI devices |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, 1.44MB drives |
|

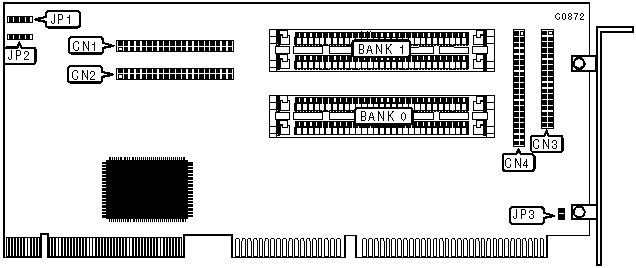

CONNECTIONS | |
|
Function |
Location |
|
40-pin connector - IDE (AT) interface 1 |
CN1 |
|
40-pin connector - IDE (AT) interface 2 |
CN2 |
|
34-pin connector - Floppy drive interface |
CN3 |
|
40-pin connector - ATAPI interface |
CN4 |
|
4-pin connector - Drive active LED |
JP1 |
|
4-pin connector - Speaker |
JP2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
|
» |
ATAPI mode enabled |
JP3 |
closed |
|
|
ATAPI mode disabled |
JP3 |
open |
Note: If you are using two BT-410CD units in the same system, both cards must have ATAPI mode disabled. | |||
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
512KB |
(2) 256K x 9 |
NONE |
|
1MB |
(2) 256K x 9 |
(2) 256K x 9 |
|
2MB |
(2) 1M x 9 |
NONE |
|
2.5MB |
(2) 1M x 9 |
(2) 256K x 9 |
|
2.5MB |
(2) 256K x 9 |
(2) 1M x 9 |
|
4MB |
(2) 1M x 9 |
(2) 1M x 9 |
|
8MB |
(2) 4M x 9 |
NONE |
|
8.5MB |
(2) 4M x 9 |
(2) 256K x 9 |
|
8.5MB |
(2) 256K x 9 |
(2) 4M x 9 |
|
10MB |
(2) 4M x 9 |
(2) 1M x 9 |
|
10MB |
(2) 1M x 9 |
(2) 4M x 9 |
|
16MB |
(2) 4M x 9 |
(2) 4M x 9 |
