ATRONICS INTERNATIONAL, INC.
ATI-IDEAL ISA-CACHE
|
| |
|
Data bus: |
16-bit ISA |
|
Size: |
Three-quarter length, full-height card |
|
Hard drive supported: |
Four IDE(AT) drives |
|
Floppy drives supported: |
None |
|

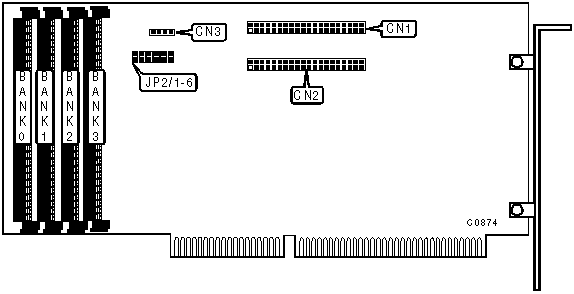

CONNECTIONS | |
|
Function |
Location |
|
40-pin primary IDE(AT) connector |
CN1 |
|
40-pin secondary IDE(AT) connector |
CN2 |
|
4-pin connector - drive active LED |
CN3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Factory configured - do not alter |
JP2/4 |
open |
| » |
IDE primary address is 1F0h |
JP2/5 |
closed |
|
IDE secondary address is 170h |
JP2/5 |
open | |
| » |
Factory configured - do not alter |
JP2/6 |
closed |
|
BIOS ADDRESS SELECTION | ||||
|
Address |
JP2/1 |
JP2/2 |
JP2/3 | |
| » |
DC000-DFFFFh |
closed |
closed |
closed |
|
C8000-CBFFFh |
closed |
open |
open | |
|
CC000-CFFFFh |
open |
closed |
open | |
|
D0000-D3FFFh |
closed |
closed |
open | |
|
D4000-D7FFFh |
open |
open |
closed | |
|
D8000-DBFFFh |
closed |
open |
closed | |
|
Disabled |
open |
open |
open | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
256KB |
(1) 256 x 9 |
none |
none |
none |
|
512KB |
(1) 256 x 9 |
(1) 256 x 9 |
none |
none |
|
768KB |
(1) 256 x 9 |
(1) 256 x 9 |
(1) 256 x 9 |
none |
|
1MB |
(1) 256 x 9 |
(1) 256 x 9 |
(1) 256 x 9 |
(1) 256 x 9 |
|
1.25MB |
(1) 1MB x 9 |
(1) 256 x 9 |
none |
none |
|
1.5MB |
(1) 1MB x 9 |
(1) 256 x 9 |
(1) 256 x 9 |
none |
|
1.75MB |
(1) 1MB x 9 |
(1) 256 x 9 |
(1) 256 x 9 |
(1) 256 x 9 |
|
2MB |
(1) 1MB x 9 |
(1) 1MB x 9 |
none |
none |
|
2.25MB |
(1) 1MB x 9 |
(1) 1MB x 9 |
(1) 256 x 9 |
none |
|
2.5MB |
(1) 1MB x 9 |
(1) 1MB x 9 |
(1) 256 x 9 |
(1) 256 x 9 |
|
3MB |
(1) 1MB x 9 |
(1) 1MB x 9 |
(1) 1MB x 9 |
none |
|
3.25MB |
(1) 1MB x 9 |
(1) 1MB x 9 |
(1) 1MB x 9 |
(1) 256 x 9 |
|
4MB |
(1) 4MB x 9 |
none |
none |
none |
|
4.25MB |
(1) 4MB x 9 |
(1) 256 x 9 |
none |
none |
|
4.5MB |
(1) 4MB x 9 |
(1) 256 x 9 |
(1) 256 x 9 |
none |
|
4.75MB |
(1) 4MB x 9 |
(1) 256 x 9 |
(1) 256 x 9 |
(1) 256 x 9 |
|
5MB |
(1) 4MB x 9 |
(1) 1MB x 9 |
none |
none |
|
5.25MB |
(1) 4MB x 9 |
(1) 1MB x 9 |
(1) 256 x 9 |
none |
|
5.5MB |
(1) 4MB x 9 |
(1) 1MB x 9 |
(1) 256 x 9 |
(1) 256 x 9 |
|
6MB |
(1) 4MB x 9 |
(1) 1MB x 9 |
(1) 1MB x 9 |
none |
|
6.25MB |
(1) 4MB x 9 |
(1) 1MB x 9 |
(1) 1MB x 9 |
(1) 256 x 9 |
|
7MB |
(1) 4MB x 9 |
(1) 1MB x 9 |
(1) 1MB x 9 |
(1) 1MB x 9 |
|
8MB |
(1) 4MB x 9 |
(1) 4MB x 9 |
none |
none |
|
8.25MB |
(1) 4MB x 9 |
(1) 4MB x 9 |
(1) 256 x 9 |
none |
|
8.5MB |
(1) 4MB x 9 |
(1) 4MB x 9 |
(1) 256 x 9 |
(1) 256 x 9 |
|
9MB |
(1) 4MB x 9 |
(1) 4MB x 9 |
(1) 1MB x 9 |
none |
|
9.25MB |
(1) 4MB x 9 |
(1) 4MB x 9 |
(1) 1MB x 9 |
(1) 256 x 9 |
|
10MB |
(1) 4MB x 9 |
(1) 4MB x 9 |
(1) 1MB x 9 |
(1) 1MB x 9 |
|
DRAM CONFIGURATION (CONTINUED) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
12MB |
(1) 4MB x 9 |
(1) 4MB x 9 |
(1) 4MB x 9 |
none |
|
12.25MB |
(1) 4MB x 9 |
(1) 4MB x 9 |
(1) 4MB x 9 |
(1) 256 x 9 |
|
13MB |
(1) 4MB x 9 |
(1) 4MB x 9 |
(1) 4MB x 9 |
(1) 1MB x 9 |
|
16MB |
(1) 4MB x 9 |
(1) 4MB x 9 |
(1) 4MB x 9 |
(1) 4MB x 9 |
|
Note: Bank 1-Bank 3 are interchangeable. Other combinations may be available. | ||||
