Processor	Unidentified
Data Bus	MCA
Card Size	Half-length, half-height card
Hard Drives supported	Two IDE (AT) drives
Floppy drives supported	None

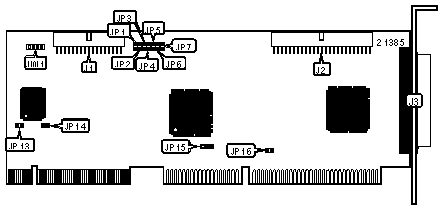

CONNECTIONS
Function	Location	Function	Location
40-pin IDE(AT) connector	J1	2-pin connector - primary drive active LED	W4

MISCELLANEOUS TECHNICAL NOTES

The AC-1070 is installed in any Micro channel slot and can coexist with any IBM hard drives or adapters. The AC-1075 fits into the IBM drive adapter slot of PS/2 models 50 and 50Z and, when used with an IDE drive, it replaces the IBM drive and adapter.
