Hard Drives supported	Up to 7 Fast SCSI-2 devices
Floppy drives supported	None
Data Bus	32-bit PCI
Card Size	Quarter-length, full-height card

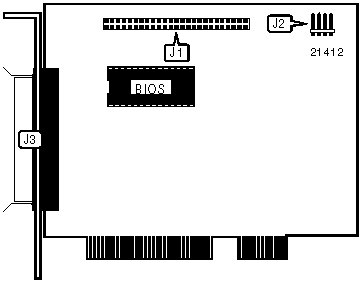

CONNECTIONS
Function	Location	Function	Location
50-pin SCSI connector - internal	J1	50-pin SCSI connector - external	J3
4-pin connector - drive active LED	J2
