Card Type	Sound card/hard drive controller
Chip Set	Adaptec SCSI, Creative Labs
Maximum Onboard Memory	N/A
I/O Options	CD-ROM audio in (3), speaker out, PCspeaker in, volume control, microphone in, line in, game/MIDI port, wavetable, SCSI Fast connector, SCSI Wide connector
Hard Drives supported	Up to 7 SCSI-2 Fast devices (single ended) Up to 7 SCSI-2 Wide devices (single ended)
Floppy drives supported	None
Data Bus	Proprietary ASUS MediaBus (PCI + ISA extension)
Card Size	Three-quarter length, full-height

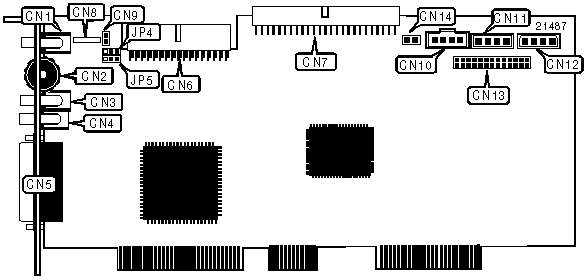

CONNECTIONS
Function	Label	Function	Label
Speaker out	CN1	External LED	CN8
Volume control	CN2	2-pin connector - drive active LED	CN9
Microphone in	CN3	CD audio in - Sony	CN10
Line in	CN4	CD audio in - MItsumi	CN11
Game/MIDI port	CN5	CD audio in - Panasonic	CN12
68-pin SCSI wide connector	CN6	Wavetable	CN13
50-pin SCSI fast connector	CN7	PCspeaker in	CN14

AUDIO ADAPTER AMPLIFIER SELECTION
Setting	JP4	JP5
Enabled	Pins 2 & 3 closed	Pins 2 & 3 closed
Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed
