Card Type	Hard drive controller card
Hard Drives supported	Up to 7 SCSI devices
Floppy drives supported	Two 360KB, 720KB, 1.2MB, or 1.44MB drives
Data Bus	16-bit ISA
Card Size	Half-length, full-height card

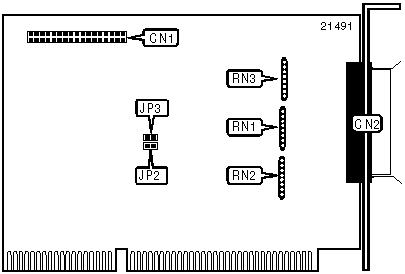

CONNECTIONS
Function	Location	Function	Location
34-pin cable connector - floppy drive	CN1	Terminating resistors	RN1-RN3
50-pin SCSI connector - external	CN2

SEGMENT ADDRESS SELECTION
Setting	JP2	JP3
CC00h	Open	Open
D000h	Closed	Open
D800h	Open	Closed
DC00h	Closed	Closed
