Card Type	Hard drive controller card
Maximum Onboard Memory	128MB DRAM
Boot ROM	Available
Hard Drives supported	Up to 15 SCSI devices
Floppy drives supported	None
Data Bus	32-bit PCI
Card Size	Full-length, full-height card

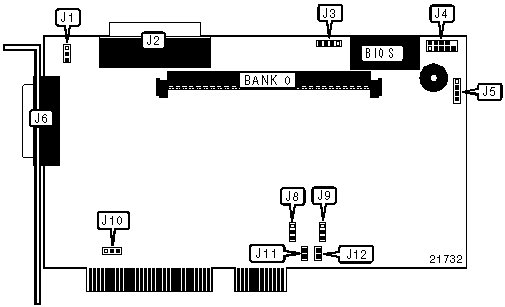

CONNECTIONS
Function	Location	Function	Location
68-pin SCSI wide connector - internal	J2	4-pin connector - drive active LED	J5
IC connector	J3	68-pin SCSI 2 wide connector - external	J6
9-pin serial port - internal	J4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	J8	Pins 1 & 2 closed
»	Factory configured - do not alter	J9	Pins 1 & 2 closed
»	Factory configured - do not alter	J10	Pins 1 & 2 closed
»	Factory configured - do not alter	J11	Open
»	Factory configured - do not alter	J12	Open

SCSI TERMINATION SELECTION
Setting	J1
Software control of SCSI termination via drive detection	Pins 1 & 2 closed
Permanently disable all onboard SCSI termination	Pins 2 & 3 closed
Permanently enable all onboard SCSI termination	Open

DRAM CONFIGURATION
Size	Bank 0
4MB	(1) 1MB x 36
8MB	(1) 2MB x 36
16MB	(1) 4MB x 36
32MB	(1) 8MB x 36
64MB	(1) 16MB x 36
128MB	(1) 32MB x 36
