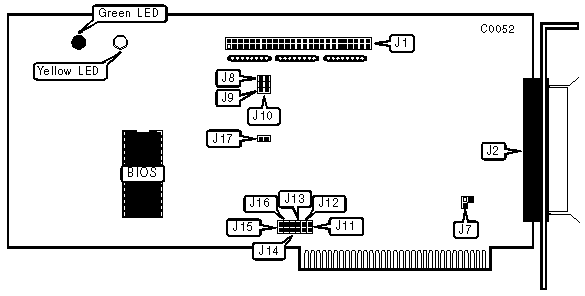

COREL CORPORATION
LS2000
|
|
Data bus: 8-bit, XT/AT
Size: Half-length, full-height card
Hard drives supported: Two SCSI drives
Floppy drives supported: None
|
CONNECTIONS | |
|
Function |
Location |
|
50-pin SCSI connector-internal |
J1 |
|
50-pin SCSI connector-external |
J2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
SCSI bus termination power enabled |
J7 |
closed horizontally |
|
SCSI bus termination power disabled |
J7 |
closed vertically | |
| » |
One wait state enabled |
J17 |
open |
|
Zero wait state enabled |
J17 |
closed | |
|
INTERRUPT REQUEST | |||||||
|
IRQ |
J11 |
J12 |
J13 |
J14 |
J15 |
J16 | |
| » |
Disabled |
open |
open |
open |
open |
open |
open |
|
IRQ2 |
closed |
open |
open |
open |
open |
open | |
|
IRQ6 |
open |
closed |
open |
open |
open |
open | |
|
IRQ7 |
open |
open |
closed |
open |
open |
open | |
|
IRQ5 |
open |
open |
open |
closed |
open |
open | |
|
IRQ4 |
open |
open |
open |
open |
closed |
open | |
|
IRQ3 |
open |
open |
open |
open |
open |
closed | |
|
BIOS ADDRESS | ||||
|
Address |
Jumper J8 |
Jumper J9 |
Jumper J10 | |
| » |
D800h |
open |
open |
open |
|
C800h |
open |
open |
closed | |
|
E000h |
open |
closed |
open | |
|
D000h |
open |
closed |
closed | |
|
DC00h |
closed |
open |
open | |
|
CC00h |
closed |
open |
closed | |
|
E400h |
closed |
closed |
open | |
|
D400h |
closed |
closed |
closed | |
