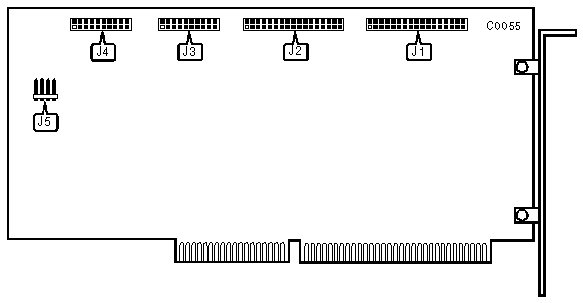

CONNECTIONS
Function	Location
34-pin data cable connector-floppy drive	J1
34-pin control cable connector-hard drive	J2
20-pin data cable connector-drive 0	J3
20-pin data cable connector-drive 1	J4
4-pin connector-drive active LED	J5

MISCELLANEOUS TECHNICAL NOTES

The DMS2000-M1 has no jumpers to configure. This controller is compatible with the Western Digital WD1003-WA2. One minor incompatibility exists between these two controllers. If the hard drive contains more than eight heads, the WD1003-WA2 numbers heads 8 through 15 as 0 through 7 in the medias ID fields. The DMS2000-M1 controller numbers heads 8 through 15 as 8 through 15. You must reformat the hard disk if you are replacing a WD1003-WA2 due to this incompatibility. This problem is not manifested in drives with less than eight heads.
