DATA TECHNOLOGY CORPORATION
DTC6290-24, DTC6290E, DTC6290SE
|
|
Data bus: 32-bit, EISA
Size: Full-length,full-height card
Hard drives supported: Four 10-15Mbit/sec ESDI drives on the DTC6290E
Four 10-24Mbit/sec ESDI drives on the DTC6290-24
Four 10-15Mbit/sec ESDI drives and up to seven
SCSI devices on the DTC6290SE
Floppy drives supported: Three 360KB, 720KB, 1.2MB, or 1.44MB
Sector interleave: 1:1
|

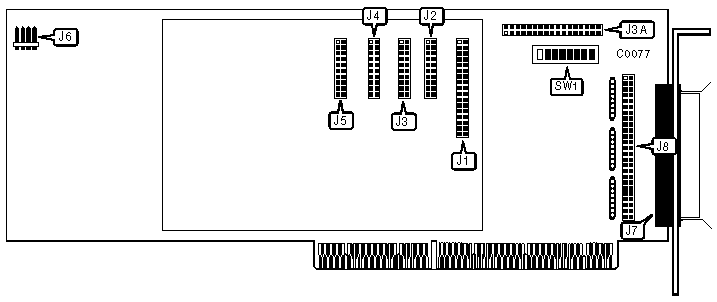

CONNECTIONS | |
|
Function |
Location |
|
34-pin control cable connector-hard drive |
J1 |
|
20-pin data cable connector-drive 0 |
J2 |
|
20-pin data cable connector-drive 1 |
J3 |
|
34-pin data cable connector-floppy drive |
J3A |
|
20-pin data cable connector-drive 2 |
J4 |
|
20-pin data cable connector-drive 3 |
J5 |
|
4-pin connector-drive active LED |
J6 |
|
50-pin SCSI connector-external (DTC6290SE only) |
J7 |
|
50-pin SCSI connector-internal (DTC6290SE only) |
J8 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Factory cofigured - do not alter |
SW1/switch 1 |
off |
| » |
Factory cofigured - do not alter |
SW1/switch 2 |
off |
| » |
Factory cofigured - do not alter |
SW1/switch 3 |
off |
| » |
"Bad sector" list on cyl N-1 and cyl N-9 |
SW1/switch 4 |
on |
|
"Bad sector" list on cyl N-1 (N = # of Cyl.) |
SW1/switch 4 |
off | |
| » |
Factory cofigured - do not alter |
SW1/switch 5 |
off |
| » |
Floppy drive enabled |
SW1/switch 6 |
off |
|
Floppy drive disabled |
SW1/switch 6 |
on | |
| » |
HD, FD and EISA register are accessible |
SW1/switch 7 |
off |
|
EISA registers are accessible only |
SW1/switch 7 |
on | |
| » |
Port addresses are 1F0-1F7h and 3F2-3F7h |
SW1/switch 8 |
off |
|
Port addresses are 170-177h and 372-377h |
SW1/switch 8 |
on | |
