DTK COMPUTER, INC.
PTI-220
|
|
Data bus: 16-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Two ST506/412 MFM drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives
|

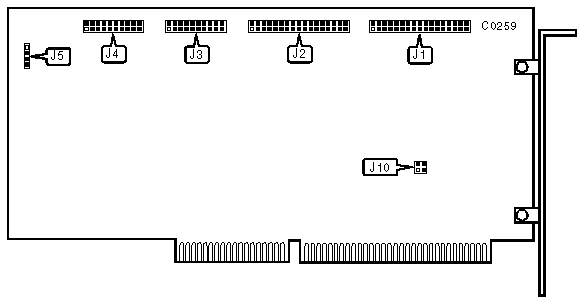

CONNECTIONS | |
|
Function |
Location |
|
34-pin data cable connector-floppy drives |
J1 |
|
34-pin control cable connector-hard drives |
J2 |
|
20-pin data cable connector-Drive 0 |
J3 |
|
20-pin data cable connector-Drive 1 |
J4 |
|
4-pin connector-drive active LED |
J5 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Hard drive port address is 1F0-1F7h |
JP10 |
pins 1 & 2 open |
|
Hard drive port address is 170-177h |
JP10 |
pins 1 & 2 closed | |
| » |
Floppy drive port address is 3F0-3F7h |
JP10 |
pins 3 & 4 open |
|
Floppy drive port address is 370-377h |
JP10 |
pins 3 & 4 closed | |
