DIAMOND FLOWER INC.
MIO-400KF REV. F
|

  |
Data bus: 16-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Two IDE (AT) Interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives
|

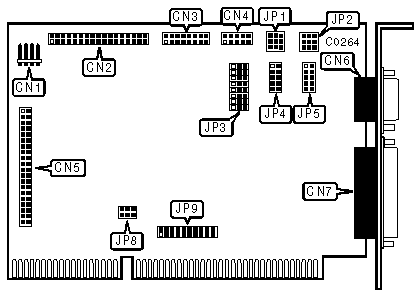

 CABLE CONNECTIONS  | |
|
 4-pin connector-drive active LED  |
 CN1  |
|
 34-pin data cable connector-floppy drive  |
 CN2  |
|
 16-pin connector-game port  |
 CN3  |
|
 10-pin connector-serial port 2  |
 CN4  |
|
 40-pin AT Interface (IDE) connector-internal  |
 CN5  |
|
 DB-9 male connector-serial port 1  |
 CN6  |
|
 DB-25 female connector-parallel port  |
 CN7  |
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Function  |
 Location  |
 Setting  | |
| » |
 Hard drive enabled  |
 JP3/jumper 8  |
 pins 2 & 3 closed  |
|
 Hard drive disabled  |
 JP3/jumper 8  |
 pins 1 & 2 closed  | |
| » |
 Game port enabled  |
 JP3/jumper 9  |
 pins 2 & 3 closed  |
|
 Game port disabled  |
 JP3/jumper 9  |
 pins 1 & 2 closed  | |
|
 SERIAL PORT SIGNAL STATUS JP1 - SERIAL PORT 1 - JP2 - SERIAL PORT 2  | |||
|
 Function  |
 Location  |
 Setting  | |
| » |
 DCD (Data Carrier Detect) - NORMAL  |
 Jumper 1  |
 pins 1 & 2 closed  |
|
 DCD (Data Carrier Detect) - FORCED TRUE  |
 Jumper 1  |
 pins 2 & 3 closed  | |
| » |
 DSR (Data Set Ready) - NORMAL  |
 Jumper 2  |
 pins 1 & 2 closed  |
|
 DSR (Data Set Ready) - FORCED TRUE  |
 Jumper 2  |
 pins 2 & 3 closed  | |
| » |
 CTS (Clear To Send) - NORMAL  |
 Jumper 3  |
 pins 1 & 2 closed  |
|
 CTS (Clear To Send) - FORCED TRUE  |
 Jumper 3  |
 pins 2 & 3 closed  | |
|
 PARALLEL PORT CONFIGURATION  | |||
|
 LPT  |
 JP3/jumper 1  |
 JP3/jumper 2  | |
|
 Disabled  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  | |
|
 LPT1 on 3BC  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  | |
|
 LPT3 on 278  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  | |
| » |
 LPT2 on 378  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 SERIAL PORT CONFIGURATION  | |||||||
|
 CN6  |
 CN4  |
 JP3/3  |
 JP3/4  |
 JP3/5  |
 JP8/1  |
 JP8/2  | |
| » |
 COM1  |
 COM2  |
 pins 2 & 3  |
 pins 2 & 3  |
 pins 2 & 3  |
 pins 1 & 2  |
 pins 1 & 2  |
|
 COM2  |
 COM3  |
 pins 2 & 3  |
 pins 2 & 3  |
 pins 1 & 2  |
 pins 2 & 3  |
 pins 2 & 3  | |
|
 COM1  |
 COM4  |
 pins 2 & 3  |
 pins 2 & 3  |
 pins 2 & 3  |
 pins 1 & 2  |
 pins 2 & 3  | |
|
 COM3  |
 COM4  |
 pins 2 & 3  |
 pins 2 & 3  |
 pins 2 & 3  |
 pins 2 & 3  |
 pins 1 & 2  | |
|
 COM1  |
 Disabled  |
 pins 2 & 3  |
 pins 1 & 2  |
 pins 2 & 3  |
 pins 1 & 2  |
 pins 1 & 2  | |
|
 Disabled  |
 COM2  |
 pins 1 & 2  |
 pins 2 & 3  |
 pins 2 & 3  |
 pins 1 & 2  |
 pins 1 & 2  | |
|
 Disabled  |
 Disabled  |
 pins 1 & 2  |
 pins 1 & 2  |
 pins 1 & 2  |
 pins 1 & 2  |
 pins 1 & 2  | |
|
 Note:Pins designated should be in the closed position.  | |||||||
|
 FLOPPY DRIVE CONFIGURATION  | |||
|
 Drive  |
 JP3/jumper 6  |
 JP3/jumper 7  | |
| » |
 Floppy drive enabled  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  |
|
 Floppy drive disabled  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  | |
|
 SERIAL PORT CONFIGURATION JUMPERS JP4 - SERIAL PORT 2 - JP5 - SERIAL PORT 1  | ||
|
 » Port is DTE (Data Terminal Equipment) |
 pins 1 & 2, 3 & 4, 5 & 6, 7 & 8, 9 & 10 closed  | |
|
 Port is DCE (Data Comm. Equipment)  |
 pins 1 & 3, 2 & 4, 5 & 7, 6 & 8, 9 & 10 closed  | |
|
 SERIAL PORT IRQ JUMPERS - JP9 JUMPERS 1-4 - SERIAL PORT 2 (DEFAULT SETTING = »Í )JUMPERS 5-8 - SERIAL PORT 1 (DEFAULT SETTING = » ) | |||||
|
 IRQ  |
 Jumper 1/5  |
 Jumper 2/6  |
 Jumper 3/7  |
 Jumper 4/8  | |
|
 IRQ2  |
 closed  |
 open  |
 open  |
 open  | |
|
 IRQ5  |
 open  |
 closed  |
 open  |
 open  | |
| » |
 IRQ4  |
 open  |
 open  |
 closed  |
 open  |
| » |
 í IRQ3 |
 open  |
 open  |
 open  |
 closed  |
|
 PARALLEL PORT IRQ  | |||
|
 IRQ  |
 JP9/jumper 11  |
 JP9/jumper 12  | |
| » |
 IRQ5 (For LPT3)  |
 closed  |
 open  |
|
 IRQ7 (For LPT1 or LPT2)  |
 open  |
 closed  | |
