CONTROL CONCEPTS, INC.
HBA-16 (REVISION 1)
|
| |
|
Data bus: |
16-bit, ISA |
|
Size: |
Three/quarter-length, full-height card |
|
Hard drive supported: |
Two IDE (AT) Interface drives |
|
Hard drive supported: |
Up to seven SCSI devices |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

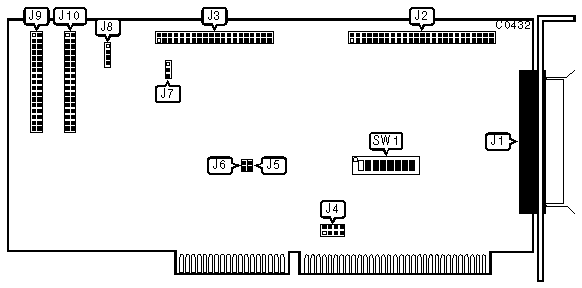

CONNECTIONS | |
|
Function |
Location |
|
50-pin SCSI connector - external |
J1 |
|
50-pin SCSI connector - internal |
J2 |
|
40-pin AT Interface (IDE) connector |
J3 |
|
4-pin connector-Drive active LED |
J8 |
|
34-pin control cable connector-floppy drive |
J9 |
|
34-pin control cable connector-floppy drive (not used) |
J10 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Interrupt Requests IRQ3, 5, 7, and 11 disabled |
J4/jumpers 1-4 |
open |
|
Interrupt Requests IRQ3, 5, 7, and 11 enabled |
J4/jumpers 1-4 |
closed | |
| » |
Hard drive enabled |
J5 |
open |
|
Hard drive disabled |
J5 |
closed | |
| » |
Floppy drive enabled |
J6 |
open |
|
Floppy drive disabled |
J6 |
closed | |
| » |
I/O port address is 1E0-1EFh |
SW1/switch 4 |
off |
|
I/O port address is 3E0-3EFh |
SW1/switch 4 |
on | |
|
BIOS ADDRESS | ||||
|
Address |
SW1/switch 1 |
SW1/switch 2 |
SW1/switch 3 | |
| » |
CC000h |
off |
off |
off |
|
D0000h |
on |
off |
off | |
|
D4000h |
off |
on |
off | |
|
D8000h |
on |
on |
off | |
|
DCOO0h |
off |
off |
on | |
|
C4000h |
on |
off |
on | |
|
C8000h |
off |
on |
on | |
|
Disabled |
on |
on |
on | |
|
SCSI ID | ||||
|
ID |
SW1/switch 5 |
SW1/switch 6 |
SW1/switch 7 | |
| » |
7 |
off |
off |
off |
|
6 |
on |
off |
off | |
|
5 |
off |
on |
off | |
|
4 |
on |
on |
off | |
|
3 |
off |
off |
on | |
|
2 |
on |
off |
on | |
|
1 |
off |
on |
on | |
|
0 |
on |
on |
on | |
|
MISCELLANEOUS TECHNICAL NOTES |
|
SW1/switch 8 and Jumper J7 are not used. |
