DATA TECHNOLOGY CORPORATION
DTC2270 (90010-89B)
|
| |
|
Data bus: |
32-bit, VL-bus |
|
Size: |
Three/quarter-length, full-height card |
|
Hard drive supported: |
Two IDE (AT) Interface drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

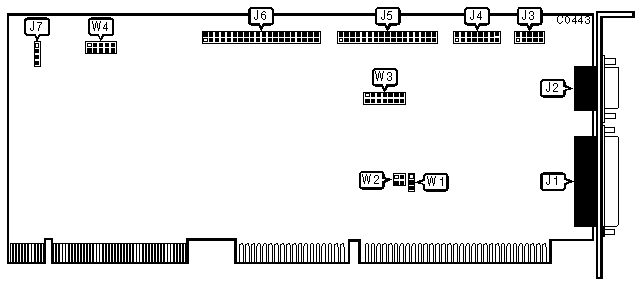

CONNECTIONS | |
|
Function |
Location |
|
25-pin parallel port (LPT1/2/3) - external |
J1 |
|
10-pin serial port 1 (COM1/3/4) - external |
J2 |
|
10-pin serial port 2 (COM1/2/4) - internal |
J3 |
|
15-pin game port - internal |
J4 |
|
34-pin control cable connector-floppy drive |
J5 |
|
40-pin AT Interface (IDE) connector |
J6 |
|
4-pin connector-Drive active LED |
J7 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Parallel Port (J1) uses IRQ7 |
W1 |
pins 1 & 2 closed |
|
Parallel Port (J1) uses IRQ5 |
W1 |
pins 2 & 3 closed | |
| » |
Floppy drive enabled |
W3/jumper 7 |
open |
|
Floppy drive disabled |
W3/jumper 7 |
closed | |
|
SERIAL PORTS INTERRUPT REQUEST CONFIGURATION - W2 | |||
|
| |||
|
IRQ |
Location |
Setting | |
| » |
Serial Port 1 (J2) uses IRQ4 |
W2 |
pins 1 & 3 closed |
|
Serial Port 2 (J3) uses IRQ3 |
pins 2 & 4 closed | ||
|
Serial Port 1 (J2) uses IRQ3 |
W2 |
pins 1 & 2 closed | |
|
Serial Port 2 (J3) uses IRQ4 |
pins 3 & 4 closed | ||
|
SERIAL PORT 2 (J3) CONFIGURATION | |||
|
COM |
W3/jumper 1 |
W3/jumper 2 | |
|
COM1 (3F8h) |
open |
closed | |
| » |
COM2 (2F8h) |
open |
open |
|
COM4 (238h) |
closed |
open | |
|
Disabled |
closed |
closed | |
|
PARALLEL PORT (J1) CONFIGURATION | |||
|
LPT |
W3/jumper 3 |
W3/jumper 4 | |
| » |
LPT1 (378h) |
open |
closed |
|
LPT2 (278h) |
open |
open | |
|
LPT3 (3BCh) |
closed |
open | |
|
Disabled |
closed |
closed | |
|
SERIAL PORT 1 (J2) CONFIGURATION | |||
|
COM |
W3/jumper 5 |
W3/jumper 6 | |
| » |
COM1 (3F8h) |
open |
open |
|
COM2 (2F8h) |
closed |
open | |
|
COM3 (338h) |
open |
closed | |
|
Disabled |
closed |
closed | |
|
DRIVE TRANSFER RATE CONFIGURATION - 33MHZ/66I MHZ MOTHERBOARDS | ||||||
|
Rate |
W4/1 |
W4/2 |
W4/3 |
W4/4 |
W4/5 | |
|
8.3Mb/sec |
open |
open |
open |
open |
open | |
|
7.3Mb/sec |
open |
open |
open |
closed |
closed | |
|
6.6Mb/sec |
open |
open |
closed |
open |
open | |
|
6.1Mb/sec |
open |
open |
closed |
open |
closed | |
|
5.5Mb/sec |
open |
open |
closed |
closed |
open | |
|
5.1Mb/sec |
open |
open |
closed |
closed |
closed | |
|
4.8Mb/sec |
open |
closed |
open |
open |
open | |
|
4.4Mb/sec |
open |
closed |
open |
open |
closed | |
|
4.1Mb/sec |
open |
closed |
open |
closed |
open | |
| » |
3.9Mb/sec |
open |
closed |
open |
closed |
closed |
|
3.7Mb/sec |
open |
closed |
closed |
open |
open | |
|
3.5Mb/sec |
open |
closed |
closed |
open |
closed | |
|
3.3Mb/sec |
open |
closed |
closed |
closed |
open | |
|
DRIVE TRANSFER RATE CONFIGURATION - 20, 25, 40 AND 50MHZ MOTHERBOARDS | |||||
|
Rate |
W4/1 |
W4/2 |
W4/3 |
W4/4 |
W4/5 |
|
7.1Mb/sec |
closed |
open |
open |
open |
open |
|
6.3Mb/sec |
closed |
open |
open |
closed |
closed |
|
5.6Mb/sec |
closed |
open |
closed |
open |
open |
|
5.0Mb/sec |
closed |
open |
closed |
open |
closed |
|
4.5Mb/sec |
closed |
open |
closed |
closed |
open |
|
4.2Mb/sec |
closed |
open |
closed |
closed |
closed |
|
3.8Mb/sec |
closed |
closed |
open |
open |
open |
|
3.6Mb/sec |
closed |
closed |
open |
open |
closed |
|
3.3Mb/sec |
closed |
closed |
open |
closed |
open |
