Data bus:	16-bit, ISA
Size:	Half-length, full-height card
Hard drives supported:	Two IDE (AT) Interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

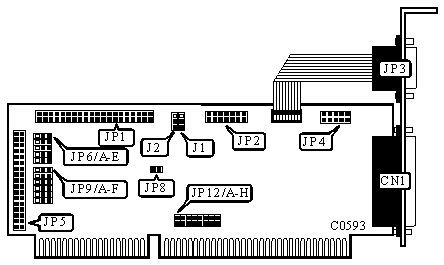

CONNECTIONS
Function	Location
25-pin parallel port	CN1
40-pin IDE (AT) Interface connector	JP1
Game port	JP2
9-pin serial port 1 - external	JP3
10-pin serial port 2 - internal	JP4
34-pin control cable connector - floppy drive	JP5
2-pin connector - drive active LED	JP8

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Primary floppy drive is A:/secondary floppy is B:	JP6/jumper A	Pins 1 & 2 closed
	Primary floppy drive is B:/secondary floppy is A:	JP6/jumper A	Pins 2 & 3 closed
	Floppy drive address is 370-377h	JP6/jumper B	Pins 2 & 3 closed
	Floppy drive address is 3F0-3F7h	JP6/jumper B	Pins 1 & 2 closed
»	IDE port enabled	JP6/jumper C	Pins 1 & 2 closed
	IDE port disabled	JP6/jumper C	Pins 2 & 3 closed
»	IDE port address is 3F6, 3F7, 1F0-1F7h	JP6/jumper D	Pins 2 & 3 closed
	IDE port address is 376-377, 170-177h	JP6/jumper D	Pins 1 & 2 closed
»	Floppy drive enabled	JP6/jumper E	Pins 1 & 2 closed
	Floppy drive disabled	JP6/jumper E	Pins 2 & 3 closed
»	IDEIOR path is ATBUS IOR	J1	Pins 2 & 3 closed
	IDEIOR path is W83758P chipset - IOROP	J1	Pins 1 & 2 closed
»	IDEIOW path is ATBUS IOW	J2	Pins 2 & 3 closed
	IDEIOW path is W83758P chipset - IOWOP	J2	Pins 1 & 2 closed

SERIAL PORT 1 CONFIGURATION - JP9
COM/Address		Jumper A	Jumper B
»	COM1/3F8h	Pins 2 & 3 closed	Pins 1 & 2 closed
	COM3/3E8h	Pins 1 & 2 closed	Pins 2 & 3 closed
	COM4/2E8h	Pins 2 & 3 closed	Pins 2 & 3 closed
	Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed

SERIAL PORT 1 INTERRUPT SELECT - JP12
IRQ		Jumper A	Jumper B	Jumper C
»	IRQ4	Closed	Open	Open
	IRQ3	Open	Closed	Open
	IRQ5	Open	Open	Closed

SERIAL PORT 2 CONFIGURATION - JP9
COM/Address		Jumper C	Jumper D
»	COM2/2F8h	Pins 2 & 3 closed	Pins 1 & 2 closed
	COM3/3E8h	Pins 2 & 3 closed	Pins 2 & 3 closed
	COM4/2E8h	Pins 1 & 2 closed	Pins 2 & 3 closed
	Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed

SERIAL PORT 2 INTERRUPT SELECT - JP12
IRQ		Jumper D	Jumper E	Jumper F
»	IRQ3	Closed	Open	Open
	IRQ4	Open	Closed	Open
	IRQ5	Open	Open	Closed

PARALLEL PORT CONFIGURATION - JP9
LPT/Address		Jumper E	Jumper F
»	LPT1/378h	Pins 1 & 2 closed	Pins 2 & 3 closed
	LPT2/278h	Pins 2 & 3 closed	Pins 1 & 2 closed
	LPT3/3BCh	Pins 2 & 3 closed	Pins 2 & 3 closed
	Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed

PARALLEL PORT INTERRUPT SELECT - JP12
IRQ		Jumper G	Jumper H
»	IRQ7	Closed	Open
	IRQ5	Open	Closed
