Data bus:	16-bit ISA
Size:	Half-length, half-height card
Hard drive supported:	Two IDE(AT) interface devices
Floppy drives supported:	None

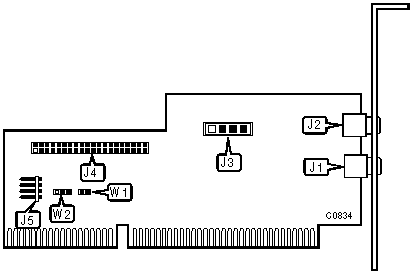

CONNECTIONS
Function	Location
Right channel audio out	J1
Left channel audio out	J2
CD-ROM audio in	J3
40-pin IDE(AT) interface connector	J4
4-pin drive active LED	J5

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	IDE(AT) interface secondary address is 170h	W1	closed
	IDE(AT) interface primary address is 1F0h	W1	open
»	Hard drive interrupt IRQ15 select	W2	pins 2 & 3 closed
	Hard drive interrupt IRQ14 select	W2	pins 1 & 2 closed

MISCELLANEOUS TECHNICAL NOTES

The DTC 2183 can coexist with ST506/412(MFM), ST506/412(RLL), ESDI, SCSI and IDE controllers. Supports ATAPI IDE CD-ROM drives.
