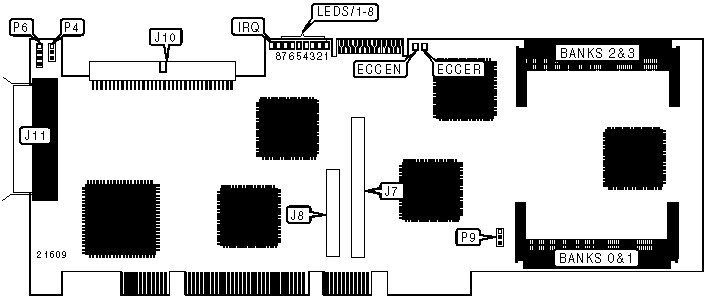

DISTRIBUTED PROCESSING TECHNOLOGY
PM3755U2B
|
 Card Type  |
 Hard drive controller  |
|
 Chip Set  |
 Unidentified  |
|
 Maximum Onboard Memory  |
 256MB DRAM  |
|
 I/O Options  |
 SCSI connectors (2), expansion module connectors (2)  |
|
 Hard Drives supported  |
 Up to 15 Ultra2/LVD Wide SCSI devices Up to 45 Wide SCSI-2 or Ultra-wide SCSI devices with expansion board upgrades  |
|
 Floppy drives supported  |
 None  |
|
 Data Bus  |
 64-bit PCI  |
|
 Card Size  |
 Full-length  |
|
 CONNECTIONS  | |||
|
 Function  |
 Label  |
 Function  |
 Label  |
|
 32-bit header connector to expansion module  |
 J7  |
 68-pin SCSI connector Ch. 0 - external  |
 J11  |
|
 64-bit header connector to expansion module  |
 J8  |
 4-pin connector - drive active LED  |
 P6  |
|
 68-pin SCSI connector Ch. 0 - internal  |
 J10  | ||
|
 Note: Header connector to BB4050 battery module is unidentified  | |||
|
 USER CONFIGURABLE SETTINGS  | ||
|
 Function  |
 Label  |
 Position  |
|
 NVRAM reset to default settings  |
 P4  |
 Pins 1 & 2 closed  |
|
 NVRAM setup parameters retained  |
 P4  |
 Pins 3 & 4 closed  |
|
 Load enabled  |
 P9  |
 Pins 1 & 2 closed  |
|
 Run enabled  |
 P9  |
 Pins 3 & 4 closed  |
|
 DIMM MEMORY CONFIGURATION  | ||||
|
 Size  |
 Bank 0  |
 Bank 1  |
 Bank 2  |
 Bank 3  |
|
 16MB  |
 (1)2MB x 64  |
 None  |
 None  |
 None  |
|
 32MB  |
 (1)2MB x 64  |
 (1)2MB x 64  |
 None  |
 None  |
|
 48MB  |
 (1)2MB x 64  |
 (1)2MB x 64  |
 (1)2MB x 64  |
 None  |
|
 64MB  |
 (1)2MB x 64  |
 (1)2MB x 64  |
 (1)2MB x 64  |
 (1)2MB x 64  |
|
 64MB  |
 (1)8MB x 64  |
 None  |
 None  |
 None  |
|
 80MB  |
 (1)8MB x 64  |
 (1)2MB x 64  |
 None  |
 None  |
|
 144MB  |
 (1)8MB x 64  |
 (1)8MB x 64  |
 (1)2MB x 64  |
 None  |
|
 160MB  |
 (1)8MB x 64  |
 (1)8MB x 64  |
 (1)2MB x 64  |
 None  |
|
 128MB  |
 (1)8MB x 64  |
 (1)8MB x 64  |
 None  |
 None  |
|
 192MB  |
 (1)8MB x 64  |
 (1)8MB x 64  |
 (1)8MB x 64  |
 None  |
|
 208MB  |
 (1)8MB x 64  |
 (1)8MB x 64  |
 (1)8MB x 64  |
 (1)2MB x 64  |
|
 256MB  |
 (1)8MB x 64  |
 (1)8MB x 64  |
 (1)8MB x 64  |
 (1)8MB x 64  |
|
 DIAGNOSTIC LED(S)  | |||
|
 LED  |
 Color  |
 Status  |
 Condition  |
|
 LED1  |
 Unidentified  |
 On  |
 Controller is ready; interrupts are enabled  |
|
 LED1  |
 Unidentified  |
 Off  |
 Controller is inactive  |
|
 LED1  |
 Unidentified  |
 Blinking  |
 Controller is active  |
|
 LED2  |
 Unidentified  |
 On  |
 Non-maskable interrupt (NMI) detected  |
|
 LED2  |
 Unidentified  |
 Off  |
 NMI not detected  |
|
 LED3  |
 Unidentified  |
 On  |
 Controller in idle loop mode  |
|
 LED3  |
 Unidentified  |
 Off  |
 Controller not in idle loop mode  |
|
 LED4  |
 Unidentified  |
 On  |
 Interrupt is being processed  |
|
 LED4  |
 Unidentified  |
 Off  |
 Interrupt is not being processed  |
|
 LED5  |
 Unidentified  |
 Off  |
 Not used  |
|
 LED6  |
 Unidentified  |
 On  |
 Cache controller is using DMA to perform a data transfer  |
|
 LED6  |
 Unidentified  |
 Off  |
 Cache controller is not using DMA to perform a data transfer  |
|
 LED7  |
 Unidentified  |
 On  |
 Parity is being generated  |
|
 LED7  |
 Unidentified  |
 Off  |
 Parity is not being generated  |
|
 LED8  |
 Unidentified  |
 On  |
 Command detected on SCSI  |
|
 LED8  |
 Unidentified  |
 Off  |
 Command not detected on SCSI  |
|
 IRQ  |
 Unidentified  |
 On  |
 Interrupt has been activated on host PCI bus  |
|
 IRQ  |
 Unidentified  |
 Off  |
 Interrupt has not been activated on host PCI bus  |
|
 ECCEN  |
 Green  |
 On  |
 Cache is ECC protected  |
|
 ECCEN  |
 Green  |
 Off  |
 Cache is not ECC protected  |
|
 ECCER  |
 Red  |
 On  |
 Error detected. Cache failure information reported  |
|
 ECCER  |
 Red  |
 Off  |
 Error not detected  |

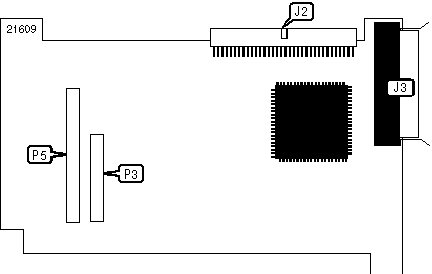

SX4055U2-1 EXPANSION MODULE
|
 CONNECTIONS  | |||
|
 Function  |
 Label  |
 Function  |
 Label  |
|
 68-pin SCSI connector Ch. 1- internal  |
 J2  |
 64-bit auxiliary header connector to Controller card  |
 P3  |
|
 68-pin SCSI connector Ch. 1 - external  |
 J3  |
 Header connector to Controller card  |
 P5  |
|
 Note: SX4055U2-1 expansion module supports an additional 15 Ultra2/LVD Wide SCSI devices  | |||

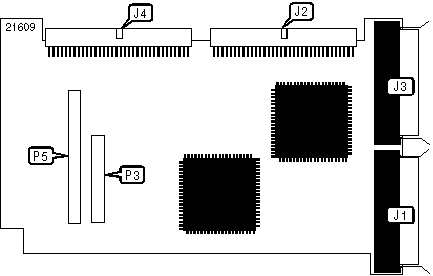

SX4055U2-2
|
 CONNECTIONS  | |||
|
 Function  |
 Label  |
 Function  |
 Label  |
|
 68-pin SCSI connector Ch. 2 - external  |
 J1  |
 68-pin SCSI connector Ch. 2 - internal  |
 J4  |
|
 68-pin SCSI connector Ch. 1- internal  |
 J2  |
 64-bit auxiliary header connector to Controller card  |
 P3  |
|
 68-pin SCSI connector Ch. 1 - external  |
 J3  |
 Header connector to Controller card  |
 P5  |
|
 Note: SX405U2-2 expansion module supports an additional 30 Ultra2/LVD Wide SCSI devices  | |||
SX4055F FC-AL
|
 CONNECTIONS  | |||
|
 Function  |
 Label  |
 Function  |
 Label  |
|
 HSSDC FC-AL connector Ch. 1 - external  |
 P2  |
 Header connector to Controller card  |
 P5  |
|
 64-bit auxiliary header connector to Controller card  |
 P3  | ||
|
 Note: Fibre channel provided by expansion module supports up to 126 additional devices  | |||

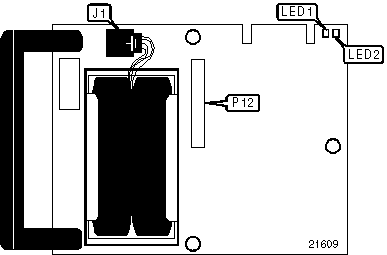

BB4050 BATTERY BACKUP MODULE
|
 CONNECTIONS  | |||
|
 Function  |
 Label  |
 Function  |
 Label  |
|
 Battery cable connector  |
 J1  |
 Header connector to Controller card  |
 P12  |
|
 Note: BB4050 battery backup module may only be installed on a PM3755U2B Controller  | |||
|
 DIAGNOSTIC LED(S)  | |||
|
 LED  |
 Color  |
 Status  |
 Condition  |
|
 LED1  |
 Unidentified  |
 On  |
 Trickle charge activity detected  |
|
 LED1  |
 Unidentified  |
 Off  |
 Trickle charge activity not detected  |
|
 LED2  |
 Unidentified  |
 On  |
 Charging/recharging mode initiated  |
|
 LED2  |
 Unidentified  |
 Off  |
 Battery module not charging  |
