Card Type	Hard drive controller card
Processor	80960KA
Maximum Onboard Memory	256KB SRAM
Hard Drives supported	6 to 10 IDE drives
Floppy drives supported	None
Data Bus	32-bit EISA
Card Size	Full-length, full-height card

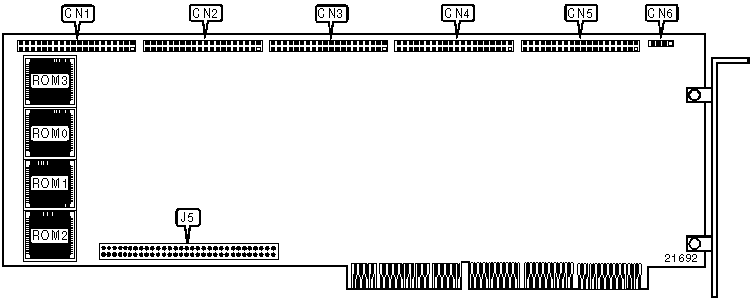

CONNECTIONS
Function	Location	Function	Location
40-pin IDE connector	CN1	40-pin IDE connector	CN5
40-pin IDE connector	CN2	4-pin connector - drive active LED	CN6
40-pin IDE connector	CN3	Connector block - Reserved	J5
40-pin IDE connector	CN4

MISCELLANEOUS TECHNICAL NOTES

Additional power supply is required to support 7 to 10 drives.

All drives should be jumpered as master
