FUTURE DOMAIN CORPORATION
TMC-860
Data bus: 8 bit, ISA
Size: Half-length, full height card
Hard drives supported: Up to seven SCSI devices
Floppy drives supported: None
Sector interleave: 1:1
|

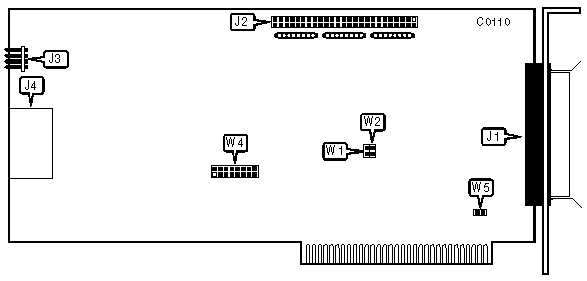

CONNECTIONS | |
|
Function |
Location |
|
25-pin SCSI connector-external |
J1 |
|
50-pin SCSI connector-internal |
J2 |
|
4-pin connector-drive active LED |
J3 |
|
4-pin connector-DC power |
J4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Zero wait state disabled |
W5 |
open |
|
Zero wait state enabled |
W5 |
closed | |
|
IRQ SELECT | ||||||||
|
IRQ |
W4/1 |
W4/2 |
W4/3 |
W4/4 |
W4/5 |
W4/6 |
W4/7 |
W4/8 |
|
IRQ3 |
closed |
open |
open |
open |
open |
open |
open |
open |
|
IRQ4 |
open |
closed |
open |
open |
open |
open |
open |
open |
|
IRQ5 |
open |
open |
closed |
open |
open |
open |
open |
open |
|
IRQ10 |
open |
open |
open |
closed |
open |
open |
open |
open |
|
IRQ11 |
open |
open |
open |
open |
closed |
open |
open |
open |
|
IRQ12 |
open |
open |
open |
open |
open |
closed |
open |
open |
|
IRQ14 |
open |
open |
open |
open |
open |
open |
closed |
open |
|
IRQ15 |
open |
open |
open |
open |
open |
open |
open |
closed |
|
BIOS BASE ADDRESS | |||
|
Address |
Jumper W1 |
Jumper W2 | |
| » |
CA00h |
open |
open |
|
C800h |
open |
closed | |
|
CE00h |
closed |
open | |
|
DE00h |
closed |
closed | |
