FUTURE DOMAIN CORPORATION
TMC-1650, TMC-1670
Data bus: 16-bit, ISA
Size: Half-length, full-height card
Hard Drives Supported: Up to seven SCSI devices
Floppy Drives Supported: TMC-1650:None
TMC-1670:Two 360KB, 720KB, 1.2MB, or 1.44MB drive
|

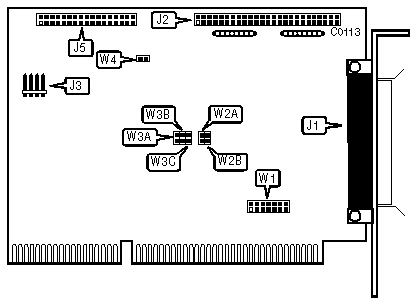

CONNECTIONS | |
|
Function |
Location |
|
DB 25 SCSI connector-external |
J1 |
|
50-pin SCSI connector-internal |
J2 |
|
4-pin connector-drive active LED |
J3 |
|
34-pin data cable connector-floppy drive (TMC-1670 only) |
J5 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
BIOS enabled |
W2A |
closed |
|
BIOS disabled |
W2A |
open | |
| » |
Memory enabled |
W2B |
closed |
|
Memory disabled |
W2B |
open | |
| » |
Floppy drive enabled (TMC-1670 only) |
W3A, W3B, & W3C |
closed |
|
Floppy drive disabled (TMC-1670 only) |
W3A, W3B, & W3C |
open | |
| » |
Termination power disabled |
W4 |
open |
|
Termination power enabled |
W4 |
closed | |
|
INTERRUPT REQUEST | |||
|
IRQ |
W1 jumper 1 |
W1 jumper 2 |
W1 jumper 3 |
|
IRQ 3 |
open |
open |
open |
|
IRQ 5 |
closed |
open |
open |
|
IRQ 10 |
open |
closed |
open |
|
IRQ 11 |
closed |
closed |
open |
|
IRQ 12 |
open |
open |
closed |
|
IRQ 14 |
closed |
open |
closed |
|
IRQ 15 |
open |
closed |
closed |
|
IRQ disabled |
closed |
closed |
closed |
|
I/O PORT ADDRESS | |||
|
Address |
W1 jumper 4 |
W1 jumper 5 | |
| » |
0140-014Fh |
open |
open |
|
0150-015Fh |
closed |
open | |
|
0160-016Fh |
open |
closed | |
|
0170-017Fh |
closed |
closed | |
|
BIOS ADDRESS | |||
|
Address |
W1 jumper 6 |
W1 jumper 7 | |
| » |
C8000h |
open |
open |
|
CA000h |
closed |
open | |
|
CE000h |
open |
closed | |
|
DE000h |
closed |
closed | |
