FUTURE DOMAIN CORPORATION
TMC-875, TMC-885
|
|
Data bus: 8-bit, ISA (extension card-edge may be present, but is not active)
Size: Full-length, full-height card
Hard drives supported: Up to seven SCSI devices
Floppy drives supported: Four 360KB, 720KB, 1.2MB, or 1.44MB drives
Sector interleave: 1:1
|

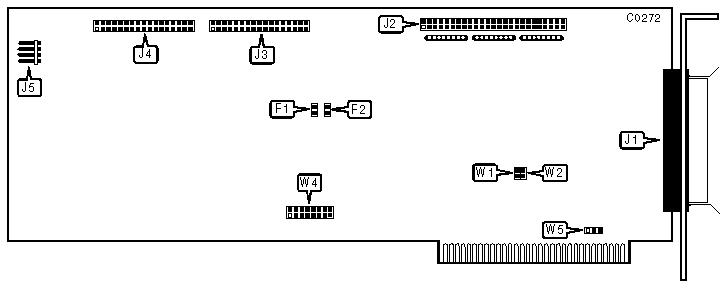

CONNECTIONS | |
|
Function |
Location |
|
25-pin SCSI connector-external |
J1 |
|
50-pin SCSI connector-internal |
J2 |
|
34-pin control cable connector-floppy drives 1 and 2 |
J3 |
|
34-pin data cable connector-floppy drives 3 and 4 |
J4 |
|
4-pin connector-drive active LED |
J5 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Floppy drive port address 3F2-3F7h, IRQ6 |
F1 |
open |
|
Floppy drive port address 372-377h, IRQ5* |
F1 |
closed | |
| » |
Hard Drive port address emulation enabled |
F2 |
open |
|
Hard drive port address emulation disabled (This is used if another hard drive controller is present) |
F2 |
closed | |
| » |
Zero Wait State disabled |
W5 |
open |
|
Zero Wait State enabled |
W5 |
closed | |
|
Note:* If this setting is used the Hard Drive IRQ must be changed | |||
|
BIOS ADDRESS | |||
|
Address |
W1 |
W2 | |
| » |
CA00h |
open |
open |
|
C800h |
open |
closed | |
|
CE00h |
closed |
open | |
|
DE00h |
closed |
closed | |
|
HARD DRIVE IRQ | |||||||||
|
IRQ |
W4/1 |
W4/2 |
W4/3 |
W4/4 |
W4/5 |
W4/6 |
W4/7 |
W4/8 | |
|
IRQ3 |
closed |
open |
open |
open |
open |
open |
open |
open | |
|
IRQ4 |
open |
closed |
open |
open |
open |
open |
open |
open | |
| » |
IRQ5 |
open |
open |
closed |
open |
open |
open |
open |
open |
|
IRQ10 |
open |
open |
open |
closed |
open |
open |
open |
open | |
|
IRQ11 |
open |
open |
open |
open |
closed |
open |
open |
open | |
|
IRQ12 |
open |
open |
open |
open |
open |
closed |
open |
open | |
|
IRQ14 |
open |
open |
open |
open |
open |
open |
closed |
open | |
|
IRQ15 |
open |
open |
open |
open |
open |
open |
open |
closed | |
