EVEREX SYSTEMS, INC.
EV-365
|
Data Bus: |
16-bit ISA |
|
Size: |
Full-length, Full-height card |
|
Hard drives supported: |
IDE (AT) drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

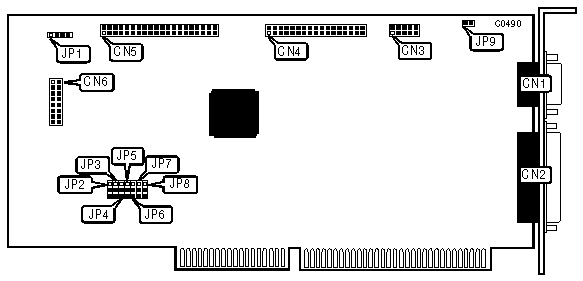

CONNECTIONS | |
|
Function |
Location |
|
10-pin serial port (COM1/3) - internal |
CN1 |
|
25-pin parallel port (LPT2/3) external |
CN2 |
|
10-pin serial port (COM2/4) - internal |
CN3 |
|
34-pin control cable connector - floppy drive |
CN4 |
|
40-pin IDE (AT) Interface connector |
CN5 |
|
15-pin game port - internal |
CN6 |
|
2-pin connector - Drive active LED |
JP1 |
|
Optional IOCHRDY for IDE interface |
JP9 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Serial port 1 enabled |
JP2 |
Pins 1 & 2 closed |
|
Serial port 1 disabled |
JP2 |
Pins 2 & 3 closed | |
| » |
Game port enabled |
JP3 |
Pins 1 & 2 closed |
|
Game port disabled |
JP3 |
Pins 2 & 3 closed | |
| » |
Floppy drive enabled |
JP4 |
Pins 1 & 2 closed |
|
Floppy drive disabled |
JP4 |
Pins 2 & 3 closed | |
| » |
Printer port is set to LPT2 |
JP5 |
Pins 1 & 2 closed |
|
Printer port is set to LPT3 |
JP5 |
Pins 2 & 3 closed | |
| » |
IDE interface enabled |
JP6 |
Pins 1 & 2 closed |
|
IDE interface disabled |
JP6 |
Pins 2 & 3 closed | |
| » |
Serial port 2 enabled |
JP7 |
Pins 1 & 2 closed |
|
Serial port 2 disabled |
JP7 |
Pins 2 & 3 closed | |
| » |
Primary Hard Disk Controller enabled |
JP8 |
Pins 1 & 2 closed |
|
Primary Hard Disk Controller disabled |
JP8 |
Pins 2 & 3 closed | |
