Data bus:	PCI-bus
Size:	Half-length, three quarter-height card
Hard drive supported:	Up to seven SCSI devices
Floppy drives supported:	Two 360KB, 720KB, 1.2MB or 1.44MB drives

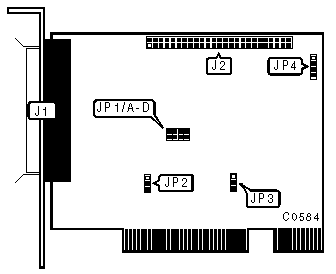

CONNECTIONS
Function	Location
50-pin SCSI connector - external	J1
50-pin SCSI connector - internal	J2
Drive active LED connector	JP4

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Factory configured - do not alter	JP2	N/A
	GA-410 is the primary SCSI card in the system	JP3	pins 1 & 2 closed
	GA-410 is other than the primary SCSI card in the system	JP3	pins 2 & 3 closed

INTERRUPT SELECT - JP1
IRQ	Jumper A	Jumper B	Jumper C	Jumper D
Interrupt A	closed	open	open	open
Interrupt B	open	closed	open	open
Interrupt C	open	open	closed	open
Interrupt D	open	open	open	closed
Note:If the GA-410 is the primary SCSI card in the system, IRQ9 must be reserved on the main board.
