EVEREX SYSTEMS, INC.
EV-392
|
| |
|
Data bus: |
8-bit, ISA |
|
Size: |
Three/quarter-length, full-height card |
|
Hard drive supported: |
Two RLL ST412 drives |
|
Floppy drives supported: |
None |
|

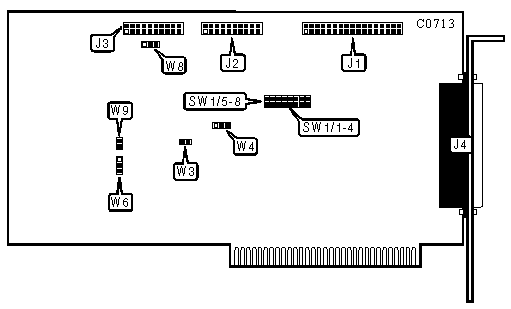

CONNECTIONS | |
|
Function |
Location |
|
34-pin control cable connector - hard drive |
J1 |
|
20-pin data cable connector - drive 1 |
J2 |
|
20-pin data cable connector - drive 2 |
J3 |
|
37-pin external drive connector |
J4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Factory configured - do not alter |
SW1/jumper 5 |
Open |
| » |
Factory configured - do not alter |
SW1/jumper 6 |
Open |
| » |
Factory configured - do not alter |
SW1/jumper 7 |
Open |
| » |
Factory configured - do not alter |
SW1/jumper 8 |
Open |
| » |
Factory configured - do not alter |
W3 |
N/A |
| » |
Factory configured - do not alter |
W4 |
N/A |
| » |
Factory configured - do not alter |
W6 |
N/A |
| » |
Factory configured - do not alter |
W9 |
N/A |
|
DRIVE FORMATS - SW1 | ||||||
|
Capacity |
Heads |
Cylinders |
Drive 1 |
Drive 2 | ||
|
Jumper 3 |
Jumper 4 |
Jumper 1 |
Jumper 2 | |||
|
65MB |
5 |
981 |
Closed |
Closed |
Closed |
Closed |
|
92MB |
7 |
987 |
Open |
Closed |
Open |
Closed |
|
31MB |
4 |
612 |
Closed |
Open |
Closed |
Open |
|
32MB |
4 |
615 |
Open |
Open |
Open |
Open |
