LONGSHINE MICROSYSTEM, INC.
LCS-6220
Data bus: 8-bit, ISA
Size: Full-length, half-height card
Hard drives supported: Two MFM ST506/ST412 drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
|

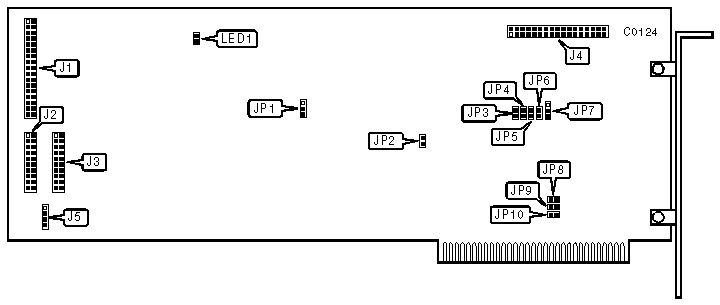

CONNECTIONS | |
|
Function |
Location |
|
34-pin control cable connector-hard drive |
J1 |
|
20-pin data cable connector-drive 0 |
J2 |
|
20-pin data cable connector-drive 1 |
J3 |
|
34-pin data cable connector-floppy drive |
J4 |
|
5-pin connector-DC power |
J5 |
|
4-pin connector-drive active LED |
LED1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Supports hard drives with 8 or less head |
JP1 |
pins 1 & 2 closed |
|
Supports hard drives with 9-16 heads |
JP1 |
pins 2 & 3 closed | |
| » |
BIOS address is E8000h |
JP2 |
closed |
|
BIOS address is E8001h |
JP2 |
open | |
| » |
Floppy drive port address is 3F0-3F7h |
JP7 |
pins 2 & 3 closed |
|
Floppy drive port address is 370-377h |
JP7 |
pins 1 & 2 closed | |
|
FLOPPY DRIVE CONFIGURATION | ||||
|
DRIVE A |
DRIVE B | |||
|
FLOPPY DRIVE TYPE |
JP3 |
JP4 |
JP5 |
JP6 |
|
360KB |
closed |
closed |
closed |
closed |
|
1.2MB |
closed |
either |
closed |
closed |
|
720KB |
open |
closed |
open |
closed |
|
1.44MB |
open |
open |
open |
open |
|
BIOS ADDRESS | ||||
|
Select |
JP8 |
JP9 |
JP10 | |
|
CA000h |
closed |
open |
open | |
| » |
CC000h |
open |
closed |
open |
|
CE000h |
open |
open |
closed | |
