LONGSHINE MICROSYSTEM, INC.
LCS-6210D/W
|
|
Data bus: 8-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Two ST506/412 MFM drives
Floppy drives supported: None
|

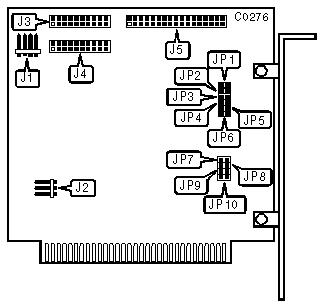

CABLE CONNECTIONS | |
|
Function |
Location |
|
4-pin connector-drive active LED |
J1 |
|
5-pin connector-DC power |
J2 |
|
20-pin data cable connector-drive 0 |
J3 |
|
20-pin data cable connector-drive 1 |
J4 |
|
34-pin control cable connector-hard drives |
J5 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Factory configured--do not alter |
JP7 |
open |
| » |
Factory configured--do not alter |
JP8 |
open |
| » |
Interrupt Request is IRQ5 |
JP9 |
open |
|
Interrupt Request is IRQ2 |
JP9 |
closed | |
|
DRIVE SELECT JUMPERS | |||||
|
Cap. (Hds. x Cyls. x SPT) |
JP1 - Drv 0 |
JP2 - Drv 0 |
JP3 - Drv 1 |
JP4 - Drv 1 | |
| » |
21MB (4x612x17) |
closed |
closed |
closed |
closed |
|
10MB (4x306x17) |
open |
closed |
open |
closed | |
|
10MB (2x615x17) |
closed |
open |
closed |
open | |
|
21MB (4x615x17) |
open |
open |
open |
open | |
|
BIOS AND PORT ADDRESS JUMPERS | ||||
|
Address |
Port address |
JP5 |
JP6 | |
| » |
C8000h |
320-323h |
open |
open |
|
CA000h |
324-327h |
closed |
open | |
|
MISCELLANEOUS TECHNICAL NOTES |
|
To allow system to be XT compatable, jumper JP10 must be open. |
