Data bus:	PCI-bus
Size:	Half-length, three quarter-height card
Hard drive supported:	Four IDE (AT) interface drives
Floppy drives supported:	None

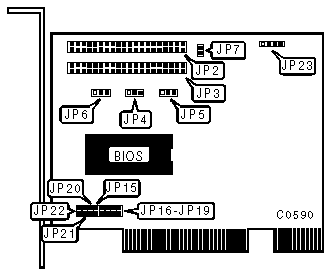

CONNECTIONS
Function	Location
40-pin IDE (AT) Interface connector - primary	JP2
40-pin IDE (AT) Interface connector - secondary	JP3
Drive active LED connector	JP23

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Factory configured - do not alter	JP6	N/A
»	Factory configured - do not alter	JP7	open

BIOS ADDRESS
Address		JP4	JP5
»	D800h	pins 2 & 3 closed	pins 2 & 3 closed
	C800h	pins 2 & 3 closed	pins 1 & 2 closed
	D000h	pins 1 & 2 closed	pins 2 & 3 closed
	Disabled (no BIOS installed)	pins 1 & 2 closed	pins 1 & 2 closed

PRIMARY IDE PORT INTERRUPT SELECT
IRQ	JP16	JP17	JP18	JP19
Interrupt A	closed	open	open	open
Interrupt B	open	closed	open	open
Interrupt C	open	open	closed	open
Interrupt D	open	open	open	closed
Note:The interrupt setting for the primary port must be the same as the setting for the secondary port.

SECONDARY IDE PORT INTERRUPT SELECT
IRQ	JP15	JP20	JP21	JP22
Interrupt A	closed	open	open	open
Interrupt B	open	closed	open	open
Interrupt C	open	open	closed	open
Interrupt D	open	open	open	closed
Note:The interrupt setting for the secondary port must be the same as the setting for the primary port.
