Data bus:	None
Size:	5.25 in. form-factor
Hard drive supported:	Up to 35 Fast SCSI-2 devices with upgrade
Floppy drives supported:	None
RAID levels supported:	0, 1, 3, 5

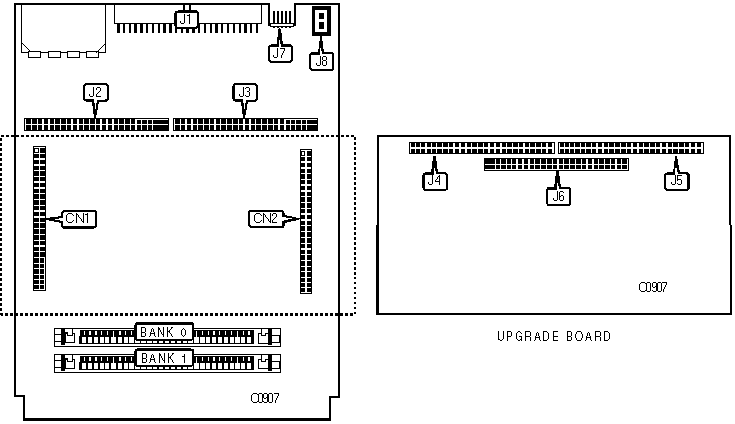

MAINBOARD CONNECTIONS
Function	Location
50-pin SCSI connector channel 0 - external	J1
50-pin SCSI connector channel 1 - internal	J2
50-pin SCSI connector channel 2 - internal	J3
9-pin serial port - external	J7
Factory diagnostic LED	J8
Connector - proprietary upgrade board	CN1
Connector - proprietary upgrade board	CN2

UPGRADE BOARD CONNECTIONS
Function	Location
50-pin SCSI connector channel 4 - internal	J4
50-pin SCSI connector channel 5 - internal	J5
50-pin SCSI connector channel 3 - internal	J6

DRAM CONFIGURATIONS
Size	Bank 0	Bank 1
2MB	(1) 512KB x 36	None
2MB	None	(1) 512 x 36
4MB	(1) 512KB x 36	(1) 512 x 36
4MB	(1) 1M x 36	None
4MB	None	(1) 1M x 36
8MB	(1) 1M x 36	(1) 1M x 36
8MB	(1) 2M x 36	None
8MB	None	(1) 2M x 36
16MB	(1) 2M x 36	(1) 2M x 36
16MB	(1) 4M x 36	None
16MB	None	(1) 4M x 36
32MB	(1) 4M x 36	(1) 4M x 36
32MB	(1) 8M x 36	None
32MB	None	(1) 8M x 36
64MB	(1) 8M x 36	(1) 8M x 36
Note: Minimum of 2 MB of DRAM must be installed with parity function. Minimum of 4 MB is recommended for RAID-3 and RAID-5 configurations.
