LONGSHINE MICROSYSTEM, INC.
LCS-6217
|
Data Bus |
8-bit ISA |
|
Card Size |
Half-length, full-height card |
|
Hard Drives supported |
Two ST-506/412(RLL) drives |
|
Floppy drives supported |
None |
|

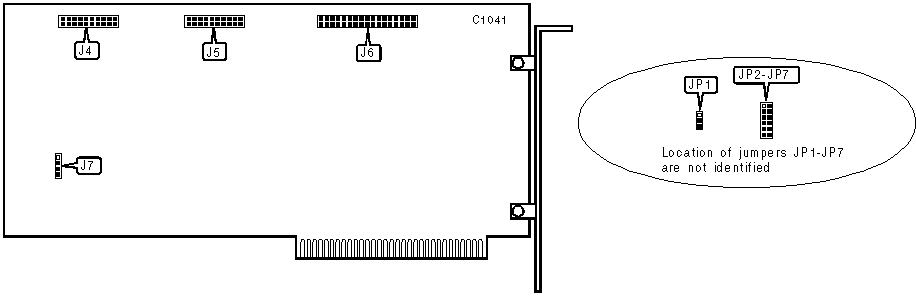

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
20-pin data cable connector - drive 2 |
J4 |
4-pin power connector |
J7 |
|
20-pin data cable connector - drive 1 |
J5 |
34-pin control cable connector - hard drive |
J6 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
ROM BIOS address is C8000h |
JP1 |
Pins 1 & 2 closed |
|
ROM BIOS address is E8000h |
JP1 |
Pins 2 & 3 closed | |
|
HARD DISK TYPE SELECTION FOR DRIVE 1 | |||||
|
Capacity |
Head |
Cylinder |
JP2 |
JP3 |
JP4 |
|
15MB |
2 |
612 |
Open |
Closed |
Open |
|
30MB |
4 |
612 |
Open |
Open |
Open |
|
30MB |
4 |
615 |
Closed |
Open |
Open |
|
60MB |
5 |
981 |
Open |
Open |
Closed |
|
HARD DISK TYPE SELECTION FOR DRIVE 2 | |||||
|
Capacity |
Head |
Cylinder |
JP5 |
JP6 |
JP7 |
|
15MB |
2 |
612 |
Open |
Closed |
Open |
|
30MB |
4 |
612 |
Open |
Open |
Open |
|
30MB |
4 |
615 |
Closed |
Open |
Open |
|
60MB |
5 |
981 |
Open |
Open |
Closed |
