Card Type	Network/Controller
Maximum Onboard Memory	16MB DRAM
I/O Options	Printer port, UPS port
Network Transfer Rate	10Mbps
Data Bus	External
Topology	Linear Bus/Star
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15 port
Hard Drives Supported	Up to 6 SCSI devices

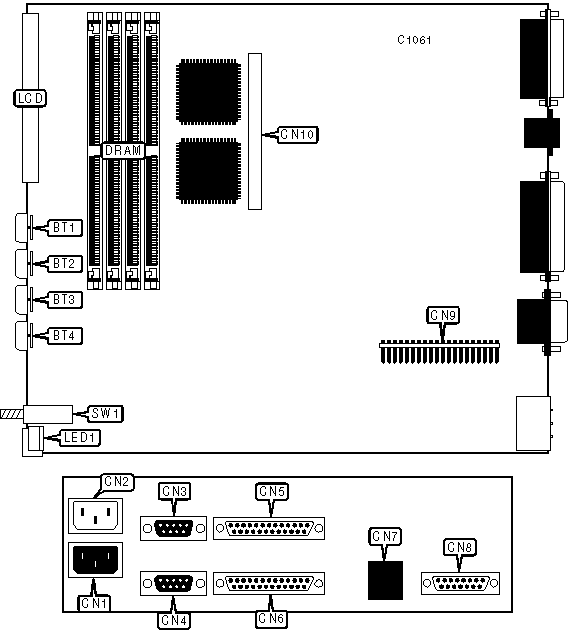

CONNECTIONS
Function	Label	Function	Label
UP button	BT1	Not used	CN5
DOWN button	BT2	25-pin SCSI connector - external	CN6
TOGGLE button	BT3	Unshielded twisted pair connector	CN7
ENTER button	BT4	AUI transceiver via DB-15 port	CN8
AC power in	CN1	Connector to DC power supply	CN9
AC power out	CN2	Connector to drive assembly	CN10
9-pin label printer port	CN3	Power switch	SW1
9-pin UPS port	CN4

DRAM
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
Note:The locations of Banks 0 and 1 are unidentified within DRAM.
