KOUWELL ELECTRONIC CORPORATION
KW-557TB
|
Card Type |
Hard drive controller card |
|
Hard Drives supported |
Four EIDE drives |
|
Floppy drives supported |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|
Data Bus |
16-bit ISA |
|
Card Size |
Half-length, full-height card |
|

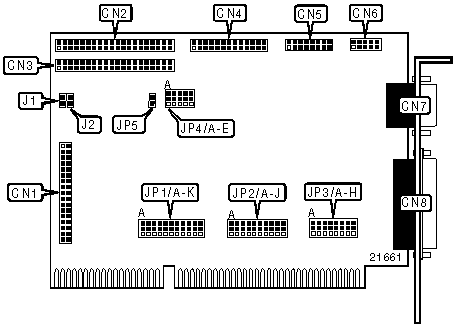

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
34-pin cable connector - floppy drive |
CN1 |
10-pin serial port 2 - internal |
CN6 |
|
40-pin primary IDE(AT) connector |
CN2 |
9-pin serial port 1 - external |
CN7 |
|
40-pin secondary IDE(AT) connector |
CN3 |
25-pin parallel port A - external |
CN8 |
|
Parallel port B internal |
CN4 |
2-pin connector - drive active LED IDE1 |
J1 |
|
16-pin game port |
CN5 |
2-pin connector - drive active LED IDE2 |
J2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
IDE(1) interface enabled |
JP4/A |
Pins 1 & 2 closed |
|
IDE(1) interface disabled |
JP4/A |
Pins 2 & 3 closed | |
| » |
IDE(2) interface enabled |
JP4/B |
Pins 1 & 2 closed |
|
IDE(2) interface disabled |
JP4/B |
Pins 2 & 3 closed | |
| » |
Floppy drive interface enabled |
JP4/C |
Pins 1 & 2 closed |
|
Floppy drive interface disabled |
JP4/C |
Pins 2 & 3 closed | |
| » |
Floppy drive order is normal (A:, B:) |
JP4/D |
Pins 1 & 2 closed |
|
Floppy drive order is reversed (B:, A:) |
JP4/D |
Pins 2 & 3 closed | |
| » |
Floppy drive primary |
JP4/E |
Pins 1 & 2 closed |
|
Floppy drive secondary |
JP4/E |
Pins 2 & 3 closed | |
| » |
Game port enabled |
JP5 |
Closed |
|
Game port disabled |
JP5 |
Open | |
|
PRINTER A DMA CHANNEL SELECTION | ||||
|
Channel |
JP2/G |
JP2/H |
JP2/I |
JP2/J |
|
1 |
Pins 1 & 2 closed |
Open |
Pins 2 & 3 closed |
Open |
|
3 |
Open |
Pins 1 & 2 closed |
Open |
Pins 2 & 3 closed |
|
PRINTER B DMA CHANNEL SELECTION | ||||
|
Channel |
JP2/G |
JP2/H |
JP2/I |
JP2/J |
|
1 |
Pins 2 & 3 closed |
Open |
Pins 2 & 3 closed |
Open |
|
3 |
Open |
Pins 2 & 3 closed |
Open |
Pins 2 & 3 closed |
|
PARALLEL PORT A ADDRESS SELECTION | ||
|
Setting |
JP3/A |
JP3/B |
|
LPT1 (378h) |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
LPT2 (278h) |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
LPT3 (3BCh) |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
Disabled |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
PARALLEL PORT B ADDRESS SELECTION | ||
|
Setting |
JP3/C |
JP3/D |
|
LPT1 (378h) |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
LPT2 (278h) |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
LPT3 (3BCh) |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
Disabled |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
SERIAL PORT 1 ADDRESS SELECTION | ||
|
Setting |
JP1/A |
JP1/B |
|
COM1 (3F8h) |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
COM3 (3E8h) |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
COM4 (2E8h) |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
Disabled |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
SERIAL PORT 2 ADDRESS SELECTION | ||
|
Setting |
JP1/C |
JP1/D |
|
COM2 (2F8h) |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
COM3 (3E8h) |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
COM4 (2E8h) |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
Disabled |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
SERIAL PORT 1 INTERRUPT SELECTION | |||||||
|
IRQ |
JP1/E |
JP1/F |
JP1/G |
JP1/H |
JP1/I |
JP1/J |
JP1/K |
|
IRQ3 |
1 & 2 |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ4 |
Open |
1 & 2 |
Open |
Open |
Open |
Open |
Open |
|
IRQ5 |
Open |
Open |
1 & 2 |
Open |
Open |
Open |
Open |
|
IRQ9 |
Open |
Open |
Open |
1 & 2 |
Open |
Open |
Open |
|
IRQ10 |
Open |
Open |
Open |
Open |
1 & 2 |
Open |
Open |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
1 & 2 |
Open |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
1 & 2 |
|
Note: Pins designated should be in the closed position. | |||||||
|
SERIAL PORT 2 INTERRUPT SELECTION | |||||||
|
IRQ |
JP1/E |
JP1/F |
JP1/G |
JP1/H |
JP1/I |
JP1/J |
JP1/K |
|
IRQ3 |
2 & 3 |
Open |
Open |
Open |
Open |
Open |
Open |
|
IRQ4 |
Open |
2 & 3 |
Open |
Open |
Open |
Open |
Open |
|
IRQ5 |
Open |
Open |
2 & 3 |
Open |
Open |
Open |
Open |
|
IRQ9 |
Open |
Open |
Open |
2 & 3 |
Open |
Open |
Open |
|
IRQ10 |
Open |
Open |
Open |
Open |
2 & 3 |
Open |
Open |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
2 & 3 |
Open |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
2 & 3 |
|
Note: Pins designate should be in the closed position. | |||||||
|
PARALLEL PORT A INTERRUPT SELECTION | ||||||
|
IRQ |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
JP2/E |
JP2/F |
|
IRQ5 |
1 & 2 |
Open |
Open |
Open |
Open |
Open |
|
IRQ7 |
Open |
1 & 2 |
Open |
Open |
Open |
Open |
|
IRQ9 |
Open |
Open |
1 & 2 |
Open |
Open |
Open |
|
IRQ10 |
Open |
Open |
Open |
1 & 2 |
Open |
Open |
|
IRQ11 |
Open |
Open |
Open |
Open |
1 & 2 |
Open |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
1 & 2 |
|
Note: Pins designated should be in the closed position. | ||||||
|
PARALLEL PORT B INTERRUPT SELECTION | ||||||
|
IRQ |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
JP2/E |
JP2/F |
|
IRQ5 |
2 & 3 |
Open |
Open |
Open |
Open |
Open |
|
IRQ7 |
Open |
Open |
Open |
Open |
Open | |
|
IRQ9 |
Open |
Open |
2 & 3 |
Open |
Open |
Open |
|
IRQ10 |
Open |
Open |
Open |
2 & 3 |
Open |
Open |
|
IRQ11 |
Open |
Open |
Open |
Open |
2 & 3 |
Open |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
2 & 3 |
|
Note: Pins designated should be in the closed position. | ||||||
|
PARALLEL PORT A MODE SELECTION | ||
|
Setting |
JP3/E |
JP3/F |
|
SPP |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
ECP |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
EPP |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
EXT2FDD |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
PARALLEL PORT B MODE SELECTION | ||
|
Setting |
JP3/G |
JP3/H |
|
SPP |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
ECP |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
EPP |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
EXT2FDD |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
