INITIO CORPORATION
INI-9400U (VER. 2)
|
Card Type |
Hard drive controller card |
|
Hard Drives supported |
Up to 7 SCSI devices |
|
Floppy drives supported |
None |
|
Data Bus |
32-bit PCI |
|
Card Size |
Full length, full-height card |
|

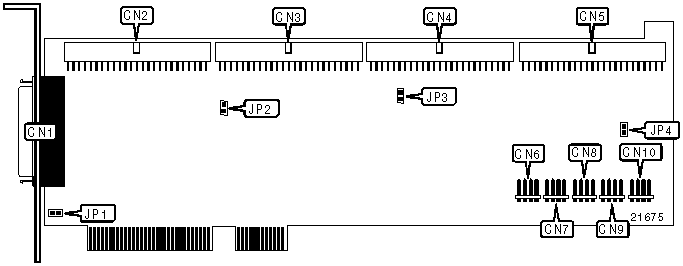

CONNECTIONS | |||
|
Function |
Location |
Function |
Location |
|
50-pin UltraSCSI connector - external |
CN1 |
Channel A LED connector |
CN6 |
|
50-pin UltraSCSI connector - internal |
CN2 |
Channel B LED connector |
CN7 |
|
50-pin UltraSCSI connector - internal |
CN3 |
Channel C LED connector |
CN8 |
|
50-pin UltraSCSI connector - internal |
CN4 |
Channel D LED connector |
CN9 |
|
50-pin UltraSCSI connector - internal |
CN5 |
Global LED connector |
CN10 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Auto termination for multiple initiators enabled |
JP1 |
Closed |
|
Auto termination for multiple initiators disabled |
JP1 |
Open | |
| » |
Auto termination for multiple initiators enabled |
JP2 |
Closed |
|
Auto termination for multiple initiators disabled |
JP2 |
Open | |
| » |
Auto termination for multiple initiators enabled |
JP3 |
Closed |
|
Auto termination for multiple initiators disabled |
JP3 |
Open | |
| » |
Auto termination for multiple initiators enabled |
JP4 |
Closed |
|
Auto termination for multiple initiators disabled |
JP4 |
Open | |
