MAYNARD ELECTRONICS, INC.
SANDSTAR SERIES
Data bus: 8-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Two MFM ST506/412 drives
Floppy drives supported: None
Maximum heads/cyl.: 16 heads and 1024 cylinders
|

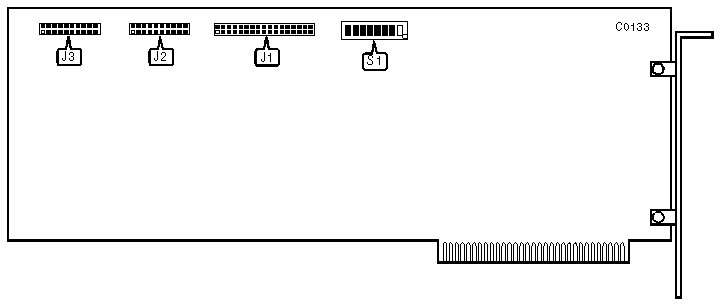

CONNECTIONS | |
|
Function |
Location |
|
20-pin data cable connector-drive 1 |
J1 |
|
20-pin data cable connector-drive 0 |
J2 |
|
34-pin control cable connector-hard drive |
J3 |
|
DRIVE TYPE - S1 | ||||||
|
# |
Hds. |
Cyl. |
Switch 1-Drv 0 Switch 5-Drv 1 |
Switch 2-Drv 0 Switch 6-Drv 1 |
Switch 3-Drv 0 Switch 7-Drv 1 |
Switch 4-Drv 0 Switch 8-Drv 1 |
|
A |
2 |
306 |
closed |
closed |
closed |
closed |
|
B |
4 |
306 |
open |
closed |
closed |
closed |
|
C |
4 |
306 |
closed |
open |
closed |
closed |
|
D |
4 |
320 |
open |
open |
closed |
closed |
|
E |
2 |
612 |
closed |
closed |
open |
closed |
|
F |
6 |
306 |
open |
closed |
open |
closed |
|
G |
4 |
512 |
closed |
open |
open |
closed |
|
H |
3 |
697 |
open |
open |
open |
closed |
|
I |
8 |
306 |
closed |
closed |
closed |
open |
|
J |
4 |
612 |
open |
closed |
closed |
open |
|
K |
4 |
640 |
closed |
open |
closed |
open |
|
L |
6 |
512 |
open |
open |
closed |
open |
|
M |
5 |
697 |
closed |
closed |
open |
open |
|
N |
6 |
612 |
open |
closed |
open |
open |
|
O |
6 |
640 |
closed |
open |
open |
open |
|
P |
8 |
480 |
open |
open |
open |
open |
