MYLEX CORPORATION
DC376
Data bus: 32 bit, Mylex AT/32 system board only
Size: Full-length, full-height card
Hard drives supported: Up to seven SCSI devices
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB
Maximum heads/cyl.: 16 heads and 2048 cylinders
|

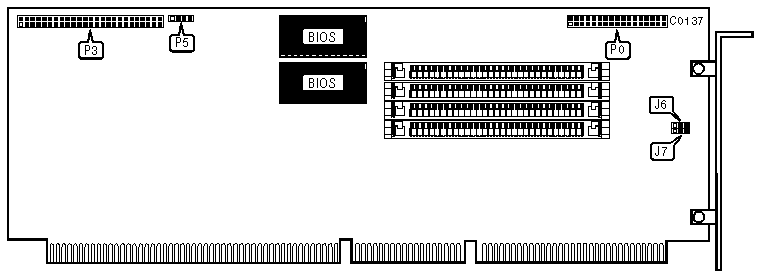

CONNECTIONS | |
|
Function |
Location |
|
34-pin data cable connector-floppy drive |
P0 |
|
50-pin SCSI connector-internal |
P3 |
|
4-pin connector-drive active LED |
P5 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Single floppy drive supported |
J6 |
pins 2 & 3 closed |
|
Dual-speed floppy drive supported |
J6 |
pins 1 & 2 closed | |
| » |
187ns write precompenstaion |
J7 |
pins 1 & 2 closed |
|
125ns write precompensation |
J7 |
pins 2 & 3 closed | |
|
DRAM CONFIGURATION | |
|
Size |
DRAM |
|
1MB |
(4) 256K x 9 |
|
4MB |
(4) 1MB x 9 |
|
MISCELLANEOUS TECHNICAL NOTES |
|
This board was designed for use with the Mylex MXA386 system board. Currently, no other system boards support this 32-bit bus. |
