DC99, DC99M

PROMISE TECHNOLOGY, INC.

DC99, DC99M

Data bus: 16-bit, ISA

Size: Half-length, full-height card

Hard drives supported: Two AT Interface (IDE) drives

Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB

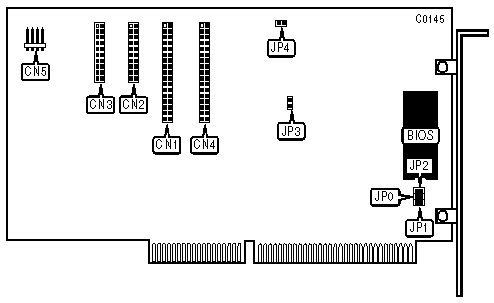

CONNECTIONS

Function

Location

40-pin AT Interface (IDE) connector

J1

34-pin control cable connector-floppy drive

J2

4-pin connector-drive active LED

JP1

USER CONFIGURABLE SETTINGS

Function

Location

Setting

»
Floppy drive enabled

JP2

pins 1 & 2 closed

Floppy drive disabled

JP2

pins 1 & 2 open

»
Factory configured - do not alter

JP2

pins 3 & 4 open

CACHE CONFIGURATION

Size

Cache

512KB

(2) 256K x 9

2MB

(2) 1M x 9

8MB

(2) 4M x 9

Note:When configuring the cache, both SIMM sockets must be occupied with identical SIMM's; i.e.: two 256KB, 1MB, or 4MB SIMM's. The modules may be 8 or 9-bits wide and must be 80nsec or faster.

MISCELLANEOUS TECHNICAL NOTES

Warning: Do not reset or power-down the system while the drive active LED is lit! Data in cache RAM will be lost!

CONNECTIONS
Function	Location
40-pin AT Interface (IDE) connector	J1
34-pin control cable connector-floppy drive	J2
4-pin connector-drive active LED	JP1

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Floppy drive enabled	JP2	pins 1 & 2 closed
	Floppy drive disabled	JP2	pins 1 & 2 open
»	Factory configured - do not alter	JP2	pins 3 & 4 open

CACHE CONFIGURATION
Size	Cache
512KB	(2) 256K x 9
2MB	(2) 1M x 9
8MB	(2) 4M x 9
Note:When configuring the cache, both SIMM sockets must be occupied with identical SIMM's; i.e.: two 256KB, 1MB, or 4MB SIMM's. The modules may be 8 or 9-bits wide and must be 80nsec or faster.
