QUANTUM CORPORATION
ISA-200S
|
|
Data bus: 16-bit, PC/AT
Size: Half-length, full-height card
Hard drives supported: Up to seven SCSI devices
Floppy drives supported: None
|

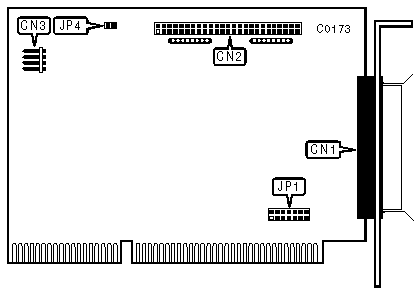

CONNECTIONS | |
|
Function |
Location |
|
DB-25 SCSI connector-external |
CN1 |
|
50-pin SCSI connector-internal |
CN2 |
|
4-pin connector-drive active LED |
CN3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Termination Power enabled |
JP4 |
closed |
|
Termination Power disabled |
JP4 |
open | |
|
INTERRUPT REQUEST | ||||
|
IRQ |
JP1/jumper 1 |
JP1/jumper 2 |
JP1/jumper 3 | |
|
IRQ3 |
open |
open |
open | |
|
IRQ5 |
closed |
open |
open | |
| » |
IRQ10 |
open |
closed |
open |
|
IRQ11 |
closed |
closed |
open | |
|
IRQ12 |
open |
open |
closed | |
|
IRQ14 |
closed |
open |
closed | |
|
IRQ 5 |
open |
closed |
closed | |
|
Disabled |
closed |
closed |
closed | |
|
I/O PORT ADDRESS | |||
|
Address |
JP1/jumper 4 |
JP1/jumper 5 | |
| » |
0140-014Fh |
open |
open |
|
0150-015Fh |
closed |
open | |
|
0160-016Fh |
open |
closed | |
|
0170-017Fh |
closed |
closed | |
|
BIOS ADDRESS | |||
|
Address |
JP1/jumper 6 |
JP1/jumper 7 | |
| » |
C8000-C9FFFh |
open |
open |
|
CA000-CBFFFh |
closed |
open | |
|
CE000-CFFFFh |
open |
closed | |
|
DE000-DFFFFh |
closed |
closed | |
|
MISCELLANEOUS TECHNICAL NOTES |
|
The SCSI ID is hard coded for ID6 |
