RANCHO TECHNOLOGY, INC.
RT1000-MC
Data bus: 16-bit, MCA
Size: Full-length card
Hard drives supported: Up to seven SCSI devices
Floppy drives supported: None
|

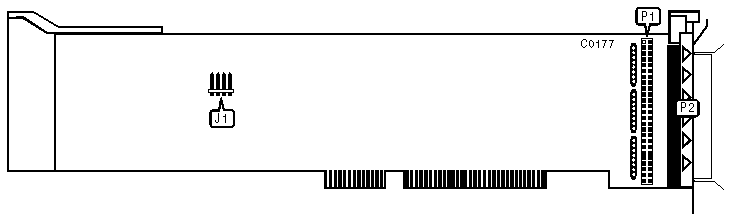

CONNECTIONS | |
|
Function |
Location |
|
4-pin connector-DC power |
J1 |
|
50-pin SCSI connector-internal |
P1 |
|
50-pin SCSI connector-external |
P2 |
|
MISCELLANEOUS TECHNICAL NOTES |
|
There are no jumpers on the RT1000-MC. All configuration is done through the use of the firmware. |
