Data bus:	32-bit VESA
Size:	Full-length, Full-height card
Hard drive supported:	2 IDE(AT) interface drives
Floppy drives supported:	360KB, 720KB, 1.2MB, 1.44MB

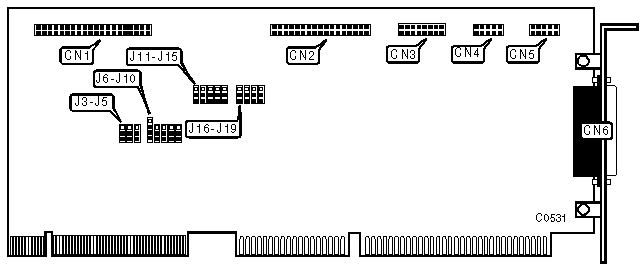

CONNECTIONS
Function	Location
40-pin IDE(AT) interface connector	CN1
34-pin control cable connector - floppy drive	CN2
15-pin game port - internal	CN3
9-pin serial port 1 - internal	CN4
9-pin serial port 2 - internal	CN5
25-pin parallel port - external	CN6
4-pin connector - drive active LED	J6

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Factory configured - do not alter	J3	N/A
»	Factory configured - do not alter	J4	N/A
»	IDE(AT) interface enabled	J7	pins 1 & 2 closed
	IDE(AT) interface disabled	J7	pins 2 & 3 closed
»	Parallel port enabled	J11	pins 1 & 2 closed
	Parallel port disabled	J11	pins 2 &3 closed
»	Factory configured - do not alter	J12	pins 2 & 3 closed

USER CONFIGURABLE SETTINGS(CONTINUED)
Function		Location	Setting
»	Serial port 1 enabled	J13	pins 1 & 2 closed
	Serial port 1 disabled	J13	pins 2 & 3 closed
»	Serial port 1 COM1 select	J14	pins 1 & 2 closed
	Serial port 1 COM3 select	J14	pins 2 & 3 closed
»	Serial port 2 enabled	J15	pins 1 & 2 closed
	Serial port 2 disabled	J15	pins 2 & 3 closed
»	Floppy drive interface enabled	J16	pins 1 & 2 closed
	Floppy drive interface disabled	J16	pins 2 & 3 closed
»	Parallel port address LPT2 select	J17	pins 1 & 2 closed
	Parallel port address LPT3 select	J17	pins 2 & 3 closed
»	Serial port 2 COM2 select	J18	pins 1 & 2 closed
	Serial port 2 COM4 select	J18	pins 2 & 3 closed
»	Game port enabled	J19	pins 1 & 2 closed
	Game port disabled	J19	pins 2 & 3 closed

33MHZ ACTIVE/RECOVERY TIME
Active	Recovery	J5	J8	J9	J10
5T	5T	open	open	open	open
5T	7T	open	closed	open	open
5T	9T	open	open	closed	open

50MHZ ACTIVE/RECOVERY TIME
Active	Recovery	J5	J8	J9	J10
9T	9T	closed	open	closed	open
9T	11T	closed	closed	closed	open
9T	13T	closed	open	open	closed
