QUICK TECHNOLOGY, INC.
SIDE JR. L (REV. 1.4A)
|
Data bus: |
32-bit VL-Bus |
|
Size: |
Three/quarter-length, half-height card |
|
Hard drive supported: |
Two IDE(AT) interface drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB drives |
|

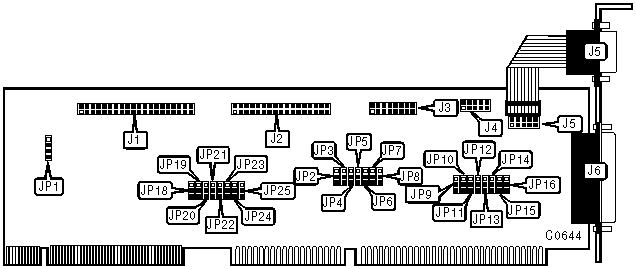

CONNECTIONS | |
|
Function |
Location |
|
40-pin connector - IDE(AT) interface |
J1 |
|
34-pin cable connector - floppy drive |
J2 |
|
16-pin game port |
J3 |
|
10-pin serial port 2 - internal |
J4 |
|
10-pin (internal)/9-pin (external) serial port 1 |
J5 |
|
25-pin parallel port - external |
J6 |
|
4-pin connector - drive active LED |
JP1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
|
» |
IDE(AT) hard drive interface enabled |
JP2/pins 1 & 2 |
closed |
|
|
IDE(AT) hard drive interface disabled |
JP2/pins 2 & 3 |
closed |
|
» |
Floppy drive interface enabled |
JP3/pins 1 & 2 |
closed |
|
|
Floppy drive interface disabled |
JP3/pins 2 & 3 |
closed |
|
» |
Game port enabled |
JP8/pins 1 & 2 |
closed |
|
|
Game port disabled |
JP8/pins 2 & 3 |
closed |
|
» |
EPP IOCHRDY signal enabled |
JP15/pins 1 & 2 |
closed |
|
|
EPP IOCHRDY signal disabled |
JP15/pins 2 & 3 |
closed |
|
» |
Parallel Port IRQ 7 select |
JP16/pins 1 & 2 |
closed |
|
|
Parallel Port IRQ 5 select |
JP16/pins 2 & 3 |
closed |
|
SERIAL PORT 1 CONFIGURATION | |||
|
Address |
JP4 |
JP5 | |
|
» |
3F8h (COM 1) |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
|
2F8h (COM 2) |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
|
3E8h (COM 3) |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
|
Disabled |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
SERIAL PORT 2 CONFIGURATION | |||
|
Address |
JP6 |
JP7 | |
|
» |
2F8h (COM 2) |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
|
3F8h (COM 1) |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
|
2E8h (COM 4) |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
|
Disabled |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
PARALLEL PORT ADDRESS SELECTION | |||
|
Address |
JP9 |
JP10 | |
|
» |
278H |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
|
378h |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
|
3BCh |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
|
Disabled |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
PARALLEL PORT MODE SELECTION | ||
|
Mode |
JP11 |
JP12 |
|
ECP & EPP |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
ECP |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
EPP |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
SPP (Printer) |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
ECP DMA SELECTION | ||
|
DMA |
JP13 |
JP14 |
|
DMA1 |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
DMA3 |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
Disabled |
open |
open |
|
SERIAL PORT 1 INTERRUPT REQUEST | |||||||||
|
IRQ |
JP18 |
JP19 |
JP20 |
JP21 |
JP22 |
JP23 |
JP24 |
JP25 | |
|
» |
4 |
open |
open |
open |
open |
open |
open |
2 & 3 |
open |
|
|
3 |
open |
open |
open |
open |
open |
open |
open |
2 & 3 |
|
|
5 |
open |
open |
open |
open |
open |
2 & 3 |
open |
open |
|
|
7 |
open |
open |
open |
open |
2 & 3 |
open |
open |
open |
|
|
9 |
open |
open |
open |
2 & 3 |
open |
open |
open |
open |
|
|
10 |
open |
open |
2 & 3 |
open |
open |
open |
open |
open |
|
|
11 |
open |
2 & 3 |
open |
open |
open |
open |
open |
open |
|
|
12 |
2 & 3 |
open |
open |
open |
open |
open |
open |
open |
|
Note: Designated pins are in the closed position. | |||||||||
|
SERIAL PORT 2 INTERRUPT REQUEST | |||||||||
|
IRQ |
JP18 |
JP19 |
JP20 |
JP21 |
JP22 |
JP23 |
JP24 |
JP25 | |
|
» |
3 |
open |
open |
open |
open |
open |
open |
open |
1 & 2 |
|
|
4 |
open |
open |
open |
open |
open |
open |
1 & 2 |
open |
|
|
5 |
open |
open |
open |
open |
open |
1 & 2 |
open |
open |
|
|
7 |
open |
open |
open |
open |
1 & 2 |
open |
open |
open |
|
|
9 |
open |
open |
open |
1 & 2 |
open |
open |
open |
open |
|
|
10 |
open |
open |
1 & 2 |
open |
open |
open |
open |
open |
|
|
11 |
open |
1 & 2 |
open |
open |
open |
open |
open |
open |
|
|
12 |
1 & 2 |
open |
open |
open |
open |
open |
open |
open |
|
Note: Designated pins are in the closed position. | |||||||||
