QUICK TECHNOLOGY, INC.
SIDE - 2615 (REV. 1.1)
|
| |
|
Data bus: |
16-bit, ISA |
|
Size: |
Three/quarter-length, full-height card |
|
Hard drive supported: |
Four IDE(AT) interface drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB drives |
|

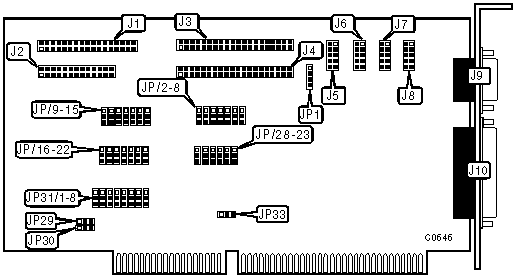

CONNECTIONS | |
|
Function |
Location |
|
34-pin floppy drive connector |
J1 |
|
26-pin parallel port - internal |
J2 |
|
40-pin primary IDE(AT) connector |
J3 |
|
40-pin secondary IDE(AT) connector |
J4 |
|
10-pin serial port 4 - internal |
J5 |
|
10-pin serial port 3 - internal |
J6 |
|
10-pin serial port 2 - internal |
J7 |
|
10-pin serial port 1 - internal |
J8 |
|
9-pin serial port 1 - external |
J9 |
|
25-pin parallel port - external |
J10 |
|
4-pin connector - drive active LED |
JP1 |
|
Note: You can only use J8 or J9 at any time. | |
|
USER CONFIGURABLE SETTINGS | |||
|
» Function |
Location |
Setting | |
| » |
IDE(AT) primary hard drive interface enabled |
JP2/pins 1 & 2 |
closed |
| » |
IDE(AT) primary hard drive interface disabled |
JP2/pins 2 & 3 |
closed |
| » |
IDE(AT) secondary hard drive interface enabled |
JP3/pins 1 & 2 |
closed |
| » |
IDE(AT) secondary hard drive interface disabled |
JP3/pins 2 & 3 |
closed |
| » |
Floppy drive interface enabled |
JP4/pins 1 & 2 |
closed |
| » |
Floppy drive interface disabled |
JP4/pins 2 & 3 |
closed |
| » |
Parallel port 1 IRQ 7 select |
JP17/pins 1 & 2 |
closed |
| » |
Parallel port 1 IRQ 5 select |
JP17/pins 1 & 2 |
closed |
| » |
Parallel port 2 IRQ 5 select |
JP22/pins 1 & 2 |
closed |
| » |
Parallel port 2 IRQ 7 select |
JP22/pins 1 & 2 |
closed |
| » |
IOCHRDY signal parallel port 1 EPP mode enabled |
JP23/pins 1 & 2 |
closed |
| » |
IOCHRDY signal parallel port 1 EPP mode disabled |
JP23/pins 2 & 3 |
closed |
| » |
IOCHRDY signal parallel port 2 EPP mode enabled |
JP26/pins 1 & 2 |
closed |
| » |
IOCHRDY signal parallel port 2 EPP mode disabled |
JP26/pins 2 & 3 |
closed |
| » |
Serial port 1 IRQ4 select |
JP29/pins 1 & 2 |
closed |
| » |
Serial port 1 IRQ3 select |
JP29/pins 2 & 3 |
closed |
| » |
Serial port 2 IRQ4 select |
JP30/pins 1 & 2 |
closed |
| » |
Serial port 2 IRQ3 select |
JP30/pins 2 & 3 |
closed |
| » |
Factory configured - do not alter |
JP31/jumper 3 |
N/A |
| » |
Secondary IDE IRQ15 select |
JP33/pins 1 & 2 |
closed |
| » |
Secondary IDE IRQ10 select |
JP33/pins 1 & 2 |
closed |
|
SERIAL PORT 1 CONFIGURATION | |||
|
Address |
JP5 |
JP6 | |
| » |
3F8h (COM1) |
pins 1 & 2 closed |
pins 2 & 3 closed |
| » |
2F8h (COM2) |
pins 1 & 2 closed |
pins 2 & 3 closed |
| » |
3E8h (COM3) |
pins 2 & 3 closed |
pins 1 & 2 closed |
| » |
Disabled |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
SERIAL PORT 2 CONFIGURATION | |||
|
Address |
JP7 |
JP8 | |
| » |
2F8h (COM2) |
pins 1 & 2 closed |
pins 1 & 2 closed |
| » |
3F8h (COM1) |
pins 1 & 2 closed |
pins 2 & 3 closed |
| » |
2E8h (COM4) |
pins 2 & 3 closed |
pins 1 & 2 closed |
| » |
Disabled |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
SERIAL PORT 3 CONFIGURATION | |||
|
Address |
JP9 |
JP10 | |
| » |
3E8h (COM3) |
pins 1 & 2 closed |
pins 1 & 2 closed |
| » |
3F8h (COM1) |
pins 2 & 3 closed |
pins 1 & 2 closed |
| » |
2F8h (COM2) |
pins 2 & 3 closed |
pins 2 & 3 closed |
| » |
Disabled |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
SERIAL PORT 4 CONFIGURATION | |||
|
Address |
JP11 |
JP12 | |
| » |
2E8h (COM4) |
pins 1 & 2 closed |
pins 1 & 2 closed |
| » |
3F8h (COM1) |
pins 2 & 3 closed |
pins 2 & 3 closed |
| » |
2F8h (COM2) |
pins 2 & 3 closed |
pins 1 & 2 closed |
| » |
Disabled |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
PARALLEL PORT 1 ADDRESS SELECTION | |||
|
Address |
JP13 |
JP14 | |
| » |
378h |
pins 1 & 2 closed |
pins 1 & 2 closed |
| » |
278h |
pins 1 & 2 closed |
pins 2 & 3 closed |
| » |
3BCh |
pins 2 & 3 closed |
pins 2 & 3 closed |
| » |
Disabled |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
PARALLEL PORT 1 MODE SELECTION | |||
|
Mode |
JP15 |
JP16 | |
| » |
ECP & EPP |
pins 1 & 2 closed |
pins 1 & 2 closed |
| » |
ECP |
pins 2 & 3 closed |
pins 1 & 2 closed |
| » |
EPP/bi-directional |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
Printer mode |
pins 2 & 3 closed |
pins 2 & 3 closed | |
|
PARALLEL PORT 2 ADDRESS SELECTION | |||
|
Address |
JP18 |
JP19 | |
| » |
278h |
pins 1 & 2 closed |
pins 1 & 2 closed |
| » |
378h |
pins 1 & 2 closed |
pins 2 & 3 closed |
| » |
3BCh |
pins 2 & 3 closed |
pins 1 & 2 closed |
| » |
Disabled |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
PARALLEL PORT 2 MODE SELECTION | |||
|
Mode |
JP20 |
JP21 | |
| » |
ECP & EPP |
pins 1 & 2 closed |
pins 1 & 2 closed |
| » |
ECP |
pins 2 & 3 closed |
pins 1 & 2 closed |
| » |
EPP/bi-directional |
pins 1 & 2 closed |
pins 2 & 3 closed |
|
Printer mode |
pins 2 & 3 closed |
pins 2 & 3 closed | |
|
PARALLEL PORT 1 ECP DMA SELECTION | |||
|
DMA |
JP24 |
JP25 | |
| » |
DMA1 |
pins 1 & 2 closed |
pins 1 & 2 closed |
| » |
DMA0 |
pins 2 & 3 closed |
pins 2 & 3 closed |
| » |
Disabled |
open |
open |
|
PARALLEL PORT 2 ECP DMA SELECTION | |||
|
DMA |
JP27 |
JP28 | |
| » |
DMA3 |
pins 1 & 2 closed |
pins 1 & 2 closed |
| » |
DMA0 |
pins 2 & 3 closed |
pins 2 & 3 closed |
| » |
Disabled |
open |
open |
|
SERIAL PORT 3 INTERRUPT SELECTION | ||||||||
|
IRQ |
JP31/1 |
JP31/2 |
JP31/3 |
JP31/4 |
JP31/5 |
JP31/6 |
JP31/7 | |
| » |
4 |
open |
pins 1&2 |
open |
open |
open |
open |
open |
| » |
3 |
pins 1&2 |
open |
open |
open |
open |
open |
open |
| » |
5 |
open |
open |
pins 1&2 |
open |
open |
open |
open |
| » |
9 |
open |
open |
open |
pins 1&2 |
open |
open |
open |
| » |
10 |
open |
open |
open |
open |
pins 1&2 |
open |
open |
| » |
11 |
open |
open |
open |
open |
open |
pins 1&2 |
open |
| » |
12 |
open |
open |
open |
open |
open |
open |
pins 1&2 |
|
Note: Designated pins are in the closed position. | ||||||||
|
SERIAL PORT 4 INTERRUPT SELECTION | ||||||||
|
IRQ |
JP31/1 |
JP31/2 |
JP31/3 |
JP31/4 |
JP31/5 |
JP31/6 |
JP31/7 | |
| » |
3 |
open |
pins 2&3 |
open |
open |
open |
open |
open |
| » |
4 |
pins 2&3 |
open |
open |
open |
open |
open |
open |
| » |
5 |
open |
open |
pins 2&3 |
open |
open |
open |
open |
| » |
9 |
open |
open |
open |
pins 2&3 |
open |
open |
open |
| » |
10 |
open |
open |
open |
open |
pins 2&3 |
open |
open |
| » |
11 |
open |
open |
open |
open |
open |
pins 2&3 |
open |
| » |
12 |
open |
open |
open |
open |
open |
open |
pins 2&3 |
|
