QDI COMPUTER, INC.
QD6500, QD6500A VL
|

  | |
|
 Data bus:  |
 32-bit, VL-bus  |
|
 Size:  |
 Three/quarter-length, half-height card  |
|
 Hard drive supported:  |
 Two IDE (AT) interface drives  |
|
 Floppy drives supported:  |
 Two 360KB, 720KB, 1.2MB or 1.44MB drives  |
|

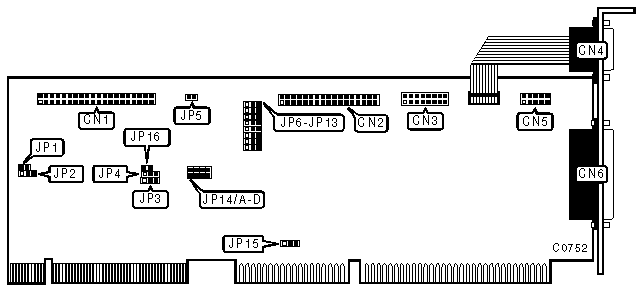

 CONNECTIONS  | |
|
 Function  |
 Location  |
|
 40-pin IDE (AT) interface connector  |
 CN1  |
|
 34-pin control cabled connector - floppy drive  |
 CN2  |
|
 Game port  |
 CN3  |
|
 9-pin serial port 1 - external  |
 CN4  |
|
 10-pin serial port 2 - internal  |
 CN5  |
|
 25-pin parallel port  |
 CN6  |
|
 2-pin connector - drive active LED  |
 JP5  |
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Function  |
 Location  |
 Setting  | |
| » |
 Factory configured - do not alter  |
 JP1  |
 open  |
| » |
 Factory configured - do not alter  |
 JP2  |
 pins 2 & 3 closed  |
| » |
 Chipset register address = 0BXh  |
 JP3  |
 pins 2 & 3 closed  |
|
 Chipset register address = 03Xh  |
 JP3  |
 pins 1 & 2 closed  | |
| » |
 IDE port address = 1F0h  |
 JP4  |
 pins 2 & 3 closed  |
|
 IDE port address = 170h  |
 JP4  |
 pins 1 & 2 closed  | |
| » |
 Floppy drive enabled  |
 JP8  |
 pins 1 & 2 closed  |
|
 Floppy drive disabled  |
 JP8  |
 pins 2 & 3 closed  | |
| » |
 Game port enabled  |
 JP13  |
 pins 1 & 2 closed  |
|
 Game port disabled  |
 JP13  |
 pins 2 & 3 closed  | |
|
 USER CONFIGURABLE SETTINGS  | |||
|
 Function  |
 Location  |
 Setting  | |
| » |
 IDE IRQ = IRQ14  |
 JP15  |
 pins 1 & 2 closed  |
|
 IDE IRQ = IRQ15  |
 JP15  |
 pins 2 & 3 closed  | |
|
 Address lines 3F7/177h enabled (74LS244 chip installed)  |
 JP16  |
 closed  | |
|
 Address lines 3F7/177h disabled  |
 JP16  |
 open  | |
|
 SERIAL PORT 1 CONFIGURATION  | |||
|
 COM  |
 JP6  |
 JP7  | |
| » |
 COM1  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 COM3  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  | |
|
 Disabled  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  | |
|
 Disabled  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  | |
|
 SERIAL PORT 2 CONFIGURATION  | |||
|
 COM  |
 JP11  |
 JP12  | |
| » |
 COM2  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 COM4  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  | |
|
 Disabled  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  | |
|
 Disabled  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  | |
|
 PARALLEL PORT CONFIGURATION  | |||
|
 LPT/Address  |
 JP9  |
 JP10  | |
| » |
 LPT1/378h  |
 pins 1 & 2 closed  |
 pins 1 & 2 closed  |
|
 LPT2/278h  |
 pins 1 & 2 closed  |
 pins 2 & 3 closed  | |
|
 Disabled  |
 pins 2 & 3 closed  |
 pins 1 & 2 closed  | |
|
 Disabled  |
 pins 2 & 3 closed  |
 pins 2 & 3 closed  | |
|
 BIOS ADDRESS - JP14  | |||||
|
 Address  |
 Jumper A  |
 Jumper B  |
 Jumper C  |
 Jumper D  | |
| » |
 Disabled  |
 closed  |
 open  |
 open  |
 open  |
|
 C800h  |
 open  |
 closed  |
 open  |
 open  | |
|
 D000h  |
 open  |
 open  |
 closed  |
 open  | |
|
 D800h  |
 open  |
 open  |
 open  |
 closed  | |
