Data bus:	16-bit ISA
Size:	Half-length, half-height card
Hard drive supported:	Two EIDE (AT) Interface drives
Floppy drives supported:	None

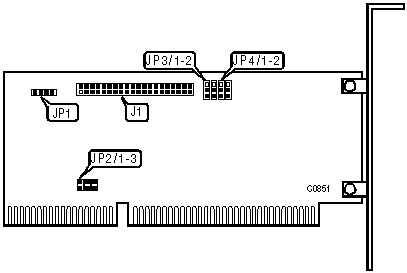

CONNECTIONS
Function	Location
40-pin EIDE(AT) interface connector	J1
4-pin connector - drive active LED	JP1

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Factory configured - do not alter	JP3/1	pins 1 & 2 closed
»	EIDEMAX is secondary IDE(AT) interface in system	JP3/2	pins 1 & 2 closed
	EIDEMAX is primary IDE(AT) interface in system	JP3/2	pins 2 & 3 closed

INTERRUPT SELECTION
IRQ		JP2/1	JP2/2	JP2/3
»	15	closed	open	open
	12	open	open	closed
	14	open	closed	open

BASE MEMORY ADDRESS SELECTION
Address		JP4/1	JP4/2
»	D0000h	pins 2 & 3 closed	pins 2 & 3 closed
	D4000h	pins 2 & 3 closed	pins 1 & 2 closed
	D8000h	pins 1 & 2 closed	pins 2 & 3 closed
	DC000h	pins 1 & 2 closed	pins 1 & 2 closed
