QDI COMPUTER, INC.
QD6580W/757/777/787/797VL
|
| |
|
Data bus: |
32-bit VL-bus |
|
Size: |
Three-quarter length, half-height card |
|
Hard drive supported: |
Four IDE(AT) drives |
|
Floppy drives supported: |
Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
|

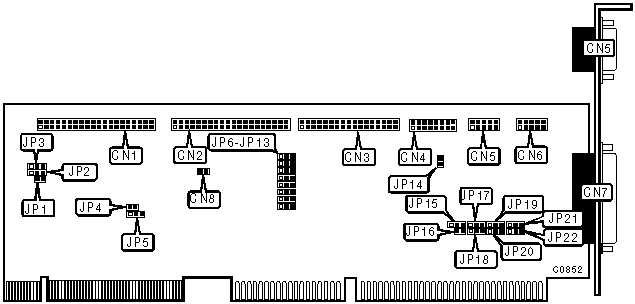

CONNECTIONS | |
|
Function |
Location |
|
40-pin primary IDE(AT) connector |
CN1 |
|
40-pin secondary IDE(AT) connector |
CN2 |
|
34-pin cable connector - floppy drive |
CN3 |
|
16-pin game port |
CN4 |
|
9-pin serial port 1 - external, 10-pin serial port 1 internal |
CN5 |
|
10-pin serial port 2 - internal |
CN6 |
|
25-pin parallel port - external |
CN7 |
|
2-pin connector - drive active LED |
CN8 |
|
PARALLEL PORT ADDRESS SELECTION | |||
|
LPT |
JP6 |
JP7 | |
| » |
LPT1 (378h) |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
LPT2 (278h) |
pins 1 & 2 closed |
pins 2 & 3 closed | |
|
LPT3 (3BCh) |
pins 2 & 3 closed |
pins 2 & 3 closed | |
|
Disabled |
pins 1 & 2 closed |
pins 1 & 2 closed | |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Location |
Setting | |
| » |
Primary IDE controls disk peripherals only |
JP1 |
open |
|
Primary IDE controls disk and non-disk peripherals |
JP1 |
closed | |
| » |
Sense clock frequency from VL slot |
JP2/pins 2 & 3 |
closed |
|
Does not sense clock frequency from VL slot |
JP2/pins 1 & 2 |
closed | |
| » |
IDE(AT) interface enabled |
JP3/pins 2 & 3 |
closed |
|
IDE(AT) interface disabled |
JP3/pins 1 & 2 |
closed | |
| » |
Primary IDE at 1FXh & secondary IDE at 17Xh enabled |
JP4 |
closed |
|
Only primary IDE at 1FX enabled |
JP4 |
open | |
| » |
Chipset register address is 0BXh |
JP5/pins 2 & 3 |
closed |
|
Chipset register address is 03Xh |
JP5/pins 1 & 2 |
open | |
| » |
Floppy drive interface enabled |
JP12/pins 2 & 3 |
closed |
|
Floppy drive interface disabled |
JP12/pins 1 & 2 |
closed | |
| » |
Floppy drive order is normal (A:, B:) |
JP13/pins 2 & 3 |
closed |
|
Floppy drive order is reversed (B:, A:) |
JP13/pins 1 & 2 |
closed | |
| » |
Game port enabled |
JP14 |
closed |
|
Game port disabled |
JP14 |
open | |
| » |
Parallel port IRQ 7 select |
JP15/pins 2 & 3 |
closed |
|
Parallel port IRQ 5 select |
JP15/pins 1 & 2 |
closed | |
| » |
Parallel port is unidirectional |
JP16 |
closed |
|
Parallel port is bi-directional |
JP16 |
open | |
| » |
Factory configured - do not alter |
JP17 |
N/A |
| » |
Factory configured - do not alter |
JP18 |
N/A |
| » |
Factory configured - do not alter |
JP19 |
N/A |
| » |
Factory configured - do not alter |
JP20 |
N/A |
| » |
Factory configured - do not alter |
JP21 |
N/A |
| » |
Factory configured - do not alter |
JP22 |
N/A |
|
SERIAL PORT 1 ADDRESS SELECTION | |||
|
COM |
JP8 |
JP9 | |
| » |
COM1 (3F8h) |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
COM3 (3E8h) |
pins 1 & 2 closed |
pins 2 & 3 closed | |
|
Disabled |
pins 1 & 2 closed |
pins 1 & 2 closed | |
|
SERIAL PORT 2 ADDRESS SELECTION | |||
|
COM |
JP10 |
JP11 | |
| » |
COM2 (2F8h) |
pins 2 & 3 closed |
pins 1 & 2 closed |
|
COM4 (2E8h) |
pins 1 & 2 closed |
pins 2 & 3 closed | |
|
Disabled |
pins 1 & 2 closed |
pins 1 & 2 closed | |
