Data bus:	16-bit ISA
Size:	Half-length, full-height card
Hard drive supported:	Two IDE(AT) drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

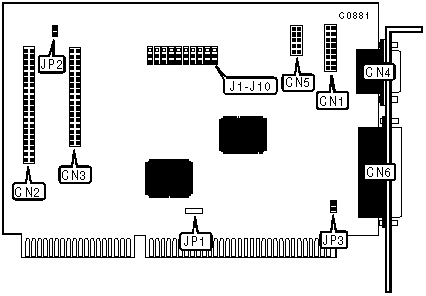

CONNECTIONS
Function	Location
16-pin game port	CN1
40-pin IDE(AT) connector	CN2
34-pin cable connector - floppy drive	CN3
9-pin serial port 1 - external	CN4
10-pin serial port 2 - internal	CN5
25-pin parallel port - external	CN6
2-pin connector - drive active LED	JP2

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	IDE(AT) interface enabled	J6	pins 2 & 3 closed
	IDE(AT) interface disabled	J6	pins 1 & 2 closed
»	Game port enabled	J7	pins 1 & 2 closed
	Game port disabled	J7	pins 2 & 3 closed
»	Floppy drive interface enabled	J9	pins 1 & 2 closed
	Floppy drive interface disabled	J9	pins 2 & 3 closed

USER CONFIGURABLE SETTINGS (CONTINUED)
Function		Location	Setting
»	Hard drive is installed	J10	pins 1 & 2 closed
	Hard drive is not installed	J10	pins 2 & 3 closed
»	Secure power source is in use by printer (standard current)	JP3	closed
	Low-end power source is in use by printer (isolate current)	JP3	open
Note: The size and significance of jumper JP1 is unidentified.

PARALLEL PORT ADDRESS SELECTION
LPT		Address	J1	J8
»	LPT1	378h	pins 1 & 2 closed	pins 1 & 2 closed
	LPT2	278h	pins 1 & 2 closed	pins 2 & 3 closed
	Disable LPT1	N/A	pins 2 & 3 closed	pins 1 & 2 closed
	Disable LPT2	N/A	pins 2 & 3 closed	pins 2 & 3 closed

SERIAL PORT ADDRESS SELECTION
Port 1 (CN4)		Port 2 (CN5)	J2	J3	J4	J5
»	COM1	COM2	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 1 & 2
	COM1	COM4	pins 1 & 2	pins 2 & 3	pins 1 & 2	pins 1 & 2
	COM3	COM2	pins 1 & 2	pins 1 & 2	pins 2 & 3	pins 1 & 2
	COM3	COM4	pins 1 & 2	pins 2 & 3	pins 2 & 3	pins 1 & 2
	COM1	Disabled	pins 2 & 3	pins 1 & 2	pins 1 & 2	pins 1 & 2
	COM3	Disabled	pins 2 & 3	pins 2 & 3	pins 2 & 3	pins 1 & 2
	Disabled	COM2	pins 1 & 2	pins 1 & 2	pins 1 & 2	pins 2 & 3
	Disabled	COM4	pins 1 & 2	pins 2 & 3	pins 1 & 2	pins 2 & 3
	Disabled	Disabled	pins 2 & 3	pins 1 & 2	pins 2 & 3	pins 2 & 3
Note: Pins designated should be in the closed position.
